Aquatherm 1030315052 12 - 14 x 2 Fusion Outlet

Product Description

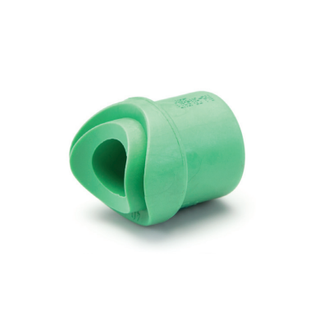

The AQUATHERM 1030315052 is a 12 - 14 X 2 IN weld-in saddle fusion outlet with a socket weld connection. Constructed from Fusiolen PP-R material conforming to ASTM F2389 standards. Designed for heat fusion, it eliminates the need for glues or gaskets. Fusion outlet fittings are rated at SDR 6.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Fusion outlet fittings are rated at SDR 6.

Product Highlights

This fusion outlet offers increased design flexibility and simplified installation. It is made from reliable polypropylene material and engineered to be heat fused together.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030315052

Technical Specifications

• Nominal Size: 12 - 14 X 2 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 63 X 84 MM Socket End, 63 MM Saddle End, 315 - 355 MM Saddle Diameter, 37.5 MM Center To End
• mpn: 1030315052
