Aquatherm 1030250918 8 - 10 x 3/4 x 1/2 Fusion Outlet Lead Free Brass NPT

Product Description

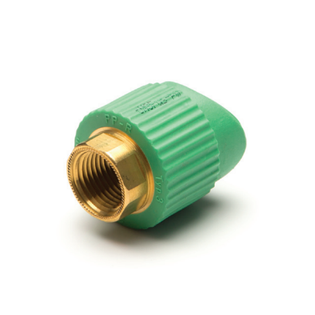

The AQUATHERM 1030250918 is a fusion outlet with lead-free brass NPT. This weld-in saddle fusion outlet features a socket weld and brass FNPT connection. Aquatherm piping products are constructed from polypropylene material and engineered for heat fusion. It is available in size 8 - 10 X 3/4 X 1/2 IN.

• Weld-In Saddle Fusion Outlet
• Lead Free Brass NPT
• Includes hex-shaped female thread

Product Highlights

The Aquatherm fusion outlet is designed for heat fusion, eliminating the need for glues or solders. It ensures a strong, reliable connection for piping systems.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030250918

Technical Specifications

• Nominal Size: 8 - 10 X 3/4 X 1/2 IN
• Connection Type: Socket Weld X Brass FNPT
• Outside Diameter: 38.5 MM
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 25 MM Saddle End, 12.7 X 24 MM Thread End, 200 MM Saddle Diameter, 39 MM Center To End
