Aquatherm 1030200943 8 x 4 Fusion Outlet

Product Description

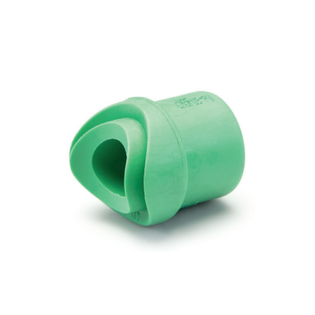

The AQUATHERM 1030200943 fusion outlet is a weld-in saddle fitting with a socket weld connection. Constructed from Fusiolen PP-R material conforming to ASTM F2389 standards. Fusion outlets offer a reliable alternative to reducing tees, installed directly onto the outside of the pipe for increased design flexibility and simplified installation.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Made from Fusiolen PP-R material

Product Highlights

This fusion outlet provides a reliable connection, stronger than the pipe itself, when properly fused. Ideal for simplifying installations.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030200943

Technical Specifications

• Nominal Size: 8 X 4 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Finish/Color: Green
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 125 X 167 MM Socket End, 125 MM Saddle End, 200 MM Saddle Diameter, 55 MM Center To End
