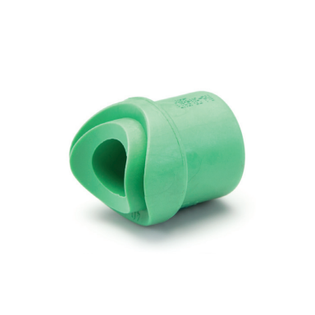

Aquatherm 1030200941 8 x 3 Fusion Outlet

Product Description

The AQUATHERM 1030200941 is an 8 X 3 fusion outlet designed for socket weld connections. Constructed from Fusiolen PP-R material conforming to ASTM F2389 standards. It allows for increased design flexibility and simplified installation. Fusion outlets are socket fused using welding heads and heating irons.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Fusion outlet fittings are rated at SDR 6.

Product Highlights

The AQUATHERM fusion outlet provides a reliable alternative to reducing tees, offering increased design flexibility and simplified installation.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030200941

Technical Specifications

• Nominal Size: 8 X 3 IN
• Connection Type: Socket Weld
• Material: Fusiolen PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 90 X 120 MM Socket End, 90 MM Saddle End, 200 MM Saddle Diameter, 45 MM Center To End
