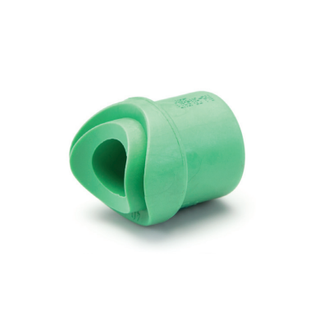

Aquatherm 1030200939 Fusion Outlet 8 X 2 IN

Product Description

The AQUATHERM 1030200939 Fusion Outlet is a weld-in saddle fusion outlet with a socket weld connection. Constructed from Fusiolen PP-R material, it adheres to ASTM F2389 material standards. Fusion outlets can be installed directly onto the outside of the pipe, allowing for increased design flexibility and simplified installation. Fusion outlets are socket fused using welding heads and heating irons.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Fusion outlets can be installed directly onto the outside of the pipe.

Product Highlights

The AQUATHERM Fusion Outlet provides increased design flexibility and simplified installation.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030200939

Technical Specifications

• Nominal Size: 8 X 2 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Finish/Color: Green
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 63 X 84 MM Socket End, 63 MM Saddle End, 200 MM Saddle Diameter, 37.5 MM Center To End
• mpn: 1030200939
