Aquatherm 1030160931 6 X 2 Aquatherm Green Fusion Outlet

Product Description

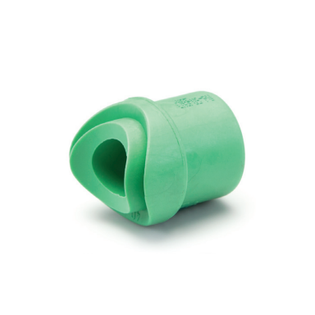

The AQUATHERM 1030160931 is a 6 X 2 weld-in saddle fusion outlet with a socket weld connection. Constructed from Fusiolen PP-R, this outlet conforms to ASTM F2389 material standards and DIN 16962, DIN EN ISO 15874 industry standards. It features a 63 X 84 MM socket end, 63 MM saddle end, 160 MM saddle diameter, and 38 MM center to end.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Fusion outlet fittings are rated at SDR 6

Product Highlights

This fusion outlet allows for increased design flexibility and simplified installation. Socket fused using welding heads and heating irons.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030160931

Technical Specifications

• Nominal Size: 6 X 2 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 63 X 84 MM Socket End, 63 MM Saddle End, 160 MM Saddle Diameter, 38 MM Center To End
