Aquatherm 1030160930 6 x 1-1/2 Aquatherm Green Fusion Outlet

Product Description

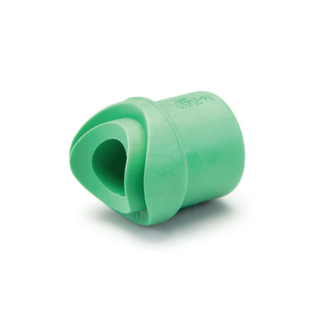

The AQUATHERM 1030160930 6 X 1-1/2 Aquatherm Green Fusion Outlet is a weld-in saddle fusion outlet with a socket weld connection. Constructed from Fusiolen PP-R material conforming to ASTM F2389 standards. Designed for increased design flexibility and simplified installation. Fusion outlet fittings are rated at SDR 6.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Fusion outlet fittings are rated at SDR 6.

Product Highlights

The Aquatherm fusion outlet allows for increased design flexibility and simplified installation. Socket fused using welding heads and heating irons.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030160930

Technical Specifications

• Nominal Size: 6 X 1-1/2 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 50 X 68 MM Socket End, 50 MM Saddle End, 160 MM Saddle Diameter, 34 MM Center To End
• Item Name: Weld-In Saddle Fusion Outlet
