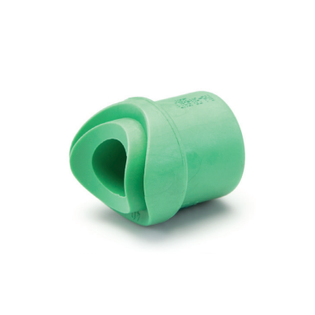

Aquatherm 1030160928 Fusion Outlet 6 x 1 IN

Product Description

The AQUATHERM 1030160928 fusion outlet is a weld-in saddle fitting with a nominal size of 6 X 1 IN and a socket weld connection. Constructed from Fusiolen PP-R material conforming to ASTM F2389 standards. Designed for increased design flexibility and simplified installation, fusion outlets are socket fused using welding heads and heating irons.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Fusion outlet fittings are rated at SDR 6.

Product Highlights

Aquatherm fusion outlets offer increased design flexibility and simplified installation. Made from polypropylene and designed for heat fusion.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030160928

Technical Specifications

• Nominal Size: 6 X 1 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 32 X 43 MM Socket End, 32 MM Saddle End, 160 MM Saddle Diameter, 30 MM Center To End
• Brand: Aquatherm
• Category: Outlet
• Mfg. Model: 1030160928
