Aquatherm 1030090912 3 X 3/4 Aquatherm Green Fusion

Product Description

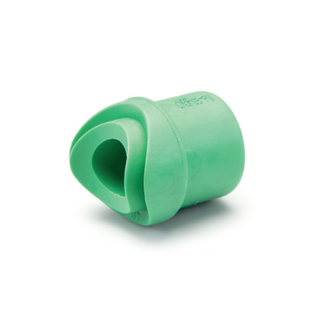

The AQUATHERM 1030090912 is a 3 X 3/4 weld-in saddle fusion outlet with a socket weld connection. Constructed from Fusiolen PP-R, it conforms to material standard ASTM F2389 and industry standards DIN 16962 and DIN EN ISO 15874. Features a 25 X 34 MM socket end, 25 MM saddle end, 90 MM saddle diameter, and 28.5 MM center to end dimension.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Made from Fusiolen PP-R

Product Highlights

This fusion outlet is designed for heat fusion, providing a strong connection. It simplifies installation with direct mounting and offers increased design flexibility.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030090912

Technical Specifications

• Nominal Size: 3 X 3/4 IN
• Connection Type: Socket Weld
• Material: Fusiolen PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 25 X 34 MM Socket End, 25 MM Saddle End, 90 MM Saddle Diameter, 28.5 MM Center To End
• Item Name: Weld-In Saddle Fusion Outlet
