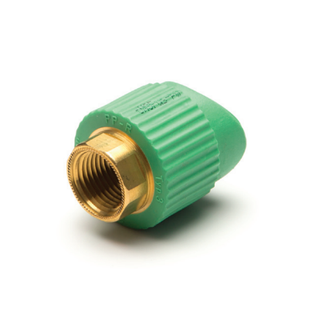

Aquatherm 1030063921 2 X 3/4 X 3/4 FPT Aquatherm Green

Product Description

The AQUATHERM 1030063921 is a weld-in saddle fusion outlet with a nominal size of 2 X 3/4 X 3/4 IN. Constructed from Fusiolen PP-R material, it conforms to ASTM F2389 material standards. It features a socket weld X brass FNPT connection type and an outside diameter of 43.5 MM. Designed for heat fusion, this outlet integrates easily with other systems.

• Weld-In Saddle Fusion Outlet
• Socket Weld X Brass FNPT Connection
• Includes hex-shaped female thread

Product Highlights

The AQUATHERM weld-in saddle fusion outlet ensures a strong, reliable connection, eliminating the need for additional materials.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030063921

Technical Specifications

• Nominal Size: 2 X 3/4 X 3/4 IN
• Connection Type: Socket Weld X Brass FNPT
• Outside Diameter: 43.5 MM
• Material: Fusiolen PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 25 MM Saddle End, 19.05 X 31 MM Thread End, 63 MM Saddle Diameter, 39 MM Center To End
