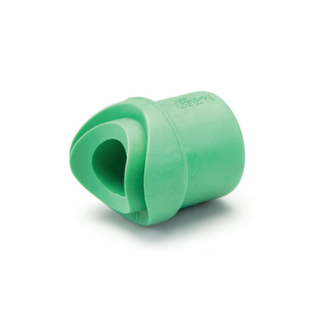

Aquatherm 1030063906 Fusion Outlet 2 X 1 IN

Product Description

The AQUATHERM 1030063906 fusion outlet is a weld-in saddle fusion outlet with a socket weld connection. It has a nominal size of 2 X 1 IN and is constructed from Fusiolen PP-R, meeting ASTM F2389 material standards. Designed for sidewall outlet fusion, it offers increased design flexibility and simplified installation.

• Weld-In Saddle Fusion Outlet
• Socket Weld Connection
• Fusion outlet fittings are rated at SDR 6.

Product Highlights

This fusion outlet provides an easy and reliable alternative to reducing tees, and can be installed directly onto the outside of the pipe.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030063906

Technical Specifications

• Nominal Size: 2 X 1 IN
• Connection Type: Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 32 X 43 MM Socket End, 32 MM Saddle End, 63 MM Saddle Diameter, 30 MM Center To End
