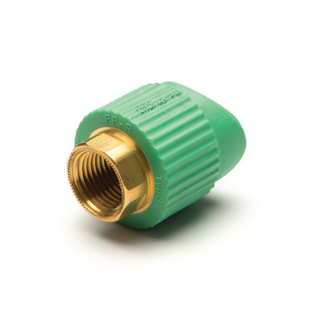

Aquatherm 1030050911 Fusion Outlet 1-1/2 X 3/4 X 1/2 FPT

Product Description

The AQUATHERM 1030050911 Fusion Outlet is a weld-in saddle fusion outlet with nominal size 1-1/2 X 3/4 X 1/2 IN. It features a socket weld x brass FNPT connection type and is constructed from Fusiolen PP-R material conforming to ASTM F2389 standards. It is also compliant with industry standards DIN 16962 and DIN EN ISO 15874.

• Weld-In Saddle Fusion Outlet
• Lead Free Brass
• Connection Type: Socket Weld X Brass FNPT

Product Highlights

This fusion outlet is designed for heat fusion, providing a strong connection. It includes a hex-shaped female thread, weld-in surface, and weld-in socket for fusion with the inner wall of the pipe.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1030050911

Technical Specifications

• Nominal Size: 1-1/2 X 3/4 X 1/2 IN
• Connection Type: Socket Weld X Brass FNPT
• Outside Diameter: 38.5 MM
• Material: Fusiolen PP-R
• Material Standard: ASTM F2389
• Finish/Color: Green
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 25 MM Saddle End, 12.7 X 24 MM Thread End, 50 MM Saddle Diameter, 39 MM Center To End
