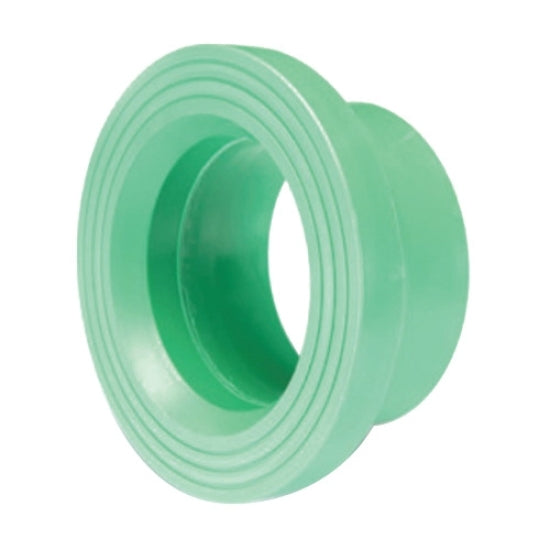

Aquatherm 0315534 Flange Adapter 8 IN SDR 9

Product Description

The AQUATHERM 0315534 flange adapter features a buttweld connection for nominal size 8 IN. Constructed from Fusiolen® PP-R and PP-RP, it conforms to material standard ASTM F2389. Designed with a wall thickness of SDR 9 and an outside diameter of 10.6 IN, this adapter includes a gasket.

• Flange Adapter
• Gasket included
• Buttweld connection

Product Highlights

The AQUATHERM flange adapter is made from Fusiolen® PP-R and PP-RP and has a buttweld connection.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 0315534

Technical Specifications

• Nominal Size: 8 IN
• Connection Type: Buttweld
• Wall Thickness: SDR 9
• Outside Diameter: 10.6 IN
• Length: 5.12 IN
• Thickness: 1.26 IN
• Material: Fusiolen PP-R And PP-RP
• Material Standard: ASTM F2389
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 7.87 X 9.13 Buttweld End
• Weight: 5.05 LBS
