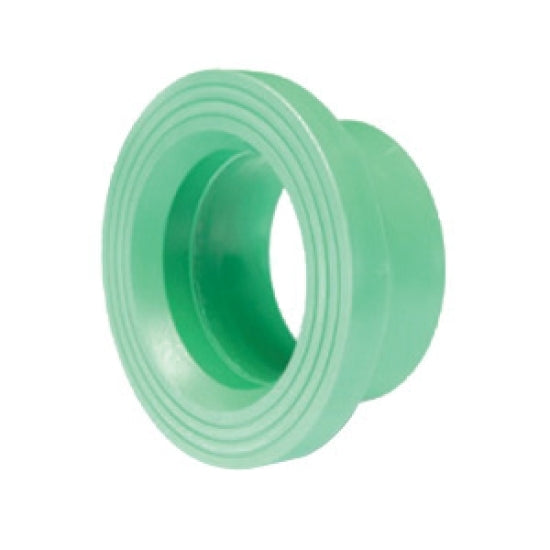

Aquatherm 0115543 Flange Adapter 12 IN

Product Description

The AQUATHERM 0115543 flange adapter features a 12 IN nominal size and is constructed from Fusiolen® PP-R And PP-RP material. Designed for buttweld connection, it conforms to ASTM F2389 material standards and DIN 16962, DIN EN ISO 15874 industry standards. Its dimensions include a 14.6 IN outside diameter and 6.61 IN length.

• Flange Adapter
• Green SDR11
• Connection Type: Buttweld

Product Highlights

The AQUATHERM Flange Adapter is a 12 IN adapter made from Fusiolen® PP-R And PP-RP material.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 0115543

Technical Specifications

• Nominal Size: 12 IN
• Connection Type: Buttweld
• Wall Thickness: SDR 11
• Outside Diameter: 14.6 IN
• Length: 6.61 IN
• Thickness: 1.38 IN
• Material: Fusiolen PP-R And PP-RP
• Material Standard: ASTM F2389
• Finish/Color: Green
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 12.4 X 13.2 IN Buttweld End
