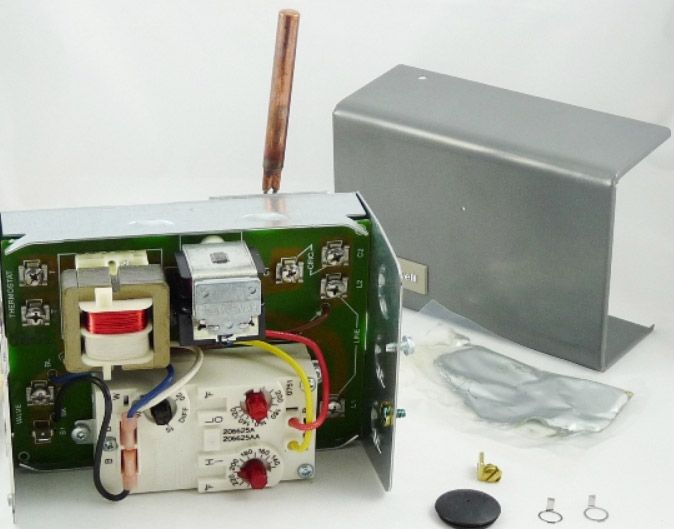

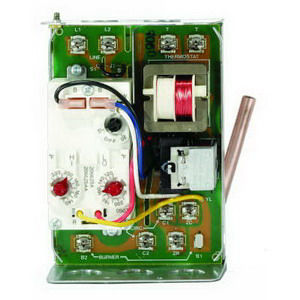

Honeywell L8124G1020 Triple Aquastast Relay 120V Burner Control

Product Description

The Honeywell L8124G1020 Triple Aquastat Relay seamlessly integrates burner control functionality with triple aquastat relay capabilities for efficient HVAC management. It is designed for hydronic heating systems, providing high limit protection, low limit, and circulator control.

• 120 volts power supply with a 60 Hz frequency.
• SPST switch type ensuring reliable operation.
• Vertical mounting, suitable for direct boiler attachment.

Product Highlights

This model optimizes system operations by combining essential control actions into one device, thereby enhancing safety and efficiency within heating systems. It caters to single-zone control and can support multiple zones with the addition of separate circulators and R845 relays for each zone.

Product Information

Standard Information

• Model Series: L8124G
• Temperature Range: 150 degrees Fahrenheit at Switch, 265 degrees Fahrenheit at Sensing Element

Technical Specifications

• Dimensions: 6-1/8 inches L x 4-3/8 inches W x 3-1/16 inches D
• Electrical Ratings: 120 V, 60 Hz
• Switch Type: SPST
• Differential: 10 - 25 degrees Fahrenheit
• Mounting Type: Vertical
