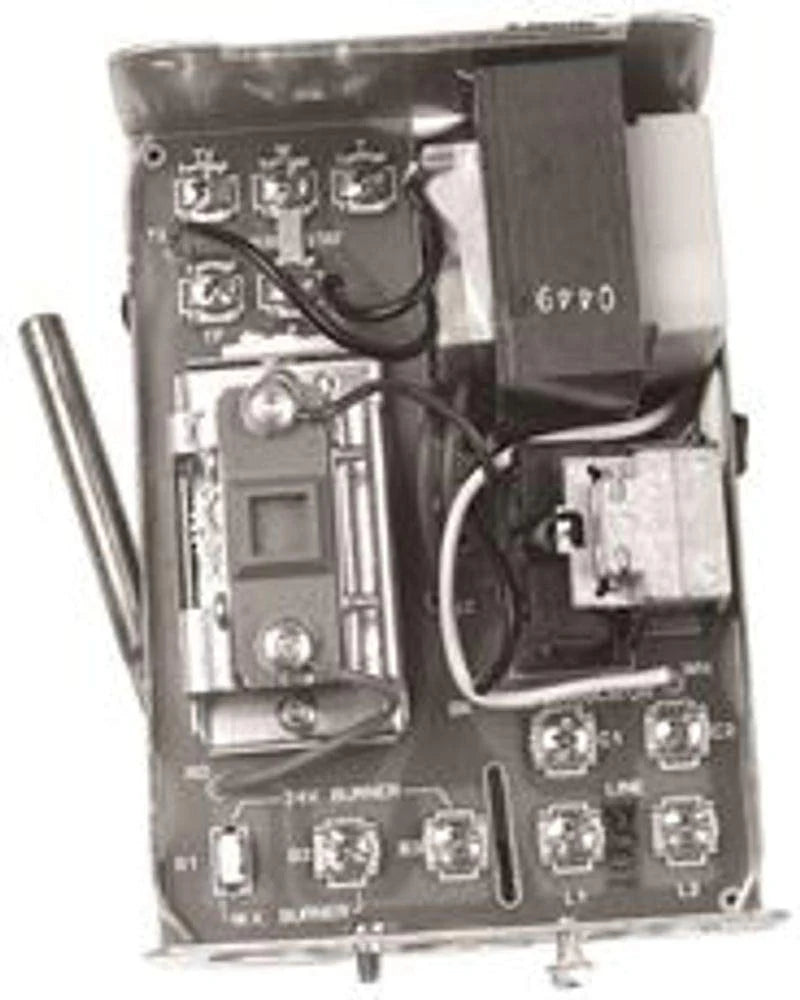

Honeywell L8148J1009 Aquastat Relay Millivolt/Low Voltage

Product Description

The Honeywell L8148J1009 Aquastat Relay is designed for millivolt or low voltage applications. This immersion-type controller combines high limit protection with switching relay control of the burner and circulator. The relay is suitable for vertical or horizontal mounting.

• Combines high limit protection with relay control
• Suitable for millivolt or low voltage systems
• Can be mounted horizontally or vertically

Product Highlights

This Aquastat Relay offers reliable high limit protection and switching relay control for burner and circulator motors. It includes a transformer for adding a remote low limit controller and is easy to mount in either horizontal or vertical positions.

Product Information

Standard Information

• Brand: Honeywell
• Model: L8148J
• MPN: L8148J1009

Technical Specifications

• Temperature Range: 120 to 240 degrees Fahrenheit
• Differential: 8 degrees Fahrenheit
• Insulation Depth: 1.5 to 3 inches
• Capillary Length: 4.5 inches
• Voltage: 24/120/240 VAC
• Amperage: 7.4 A at 120 VAC; 3.7 A at 240 VAC
• Current Rating: 0.2 Amps
• Mounting Type: Horizontal/Vertical
