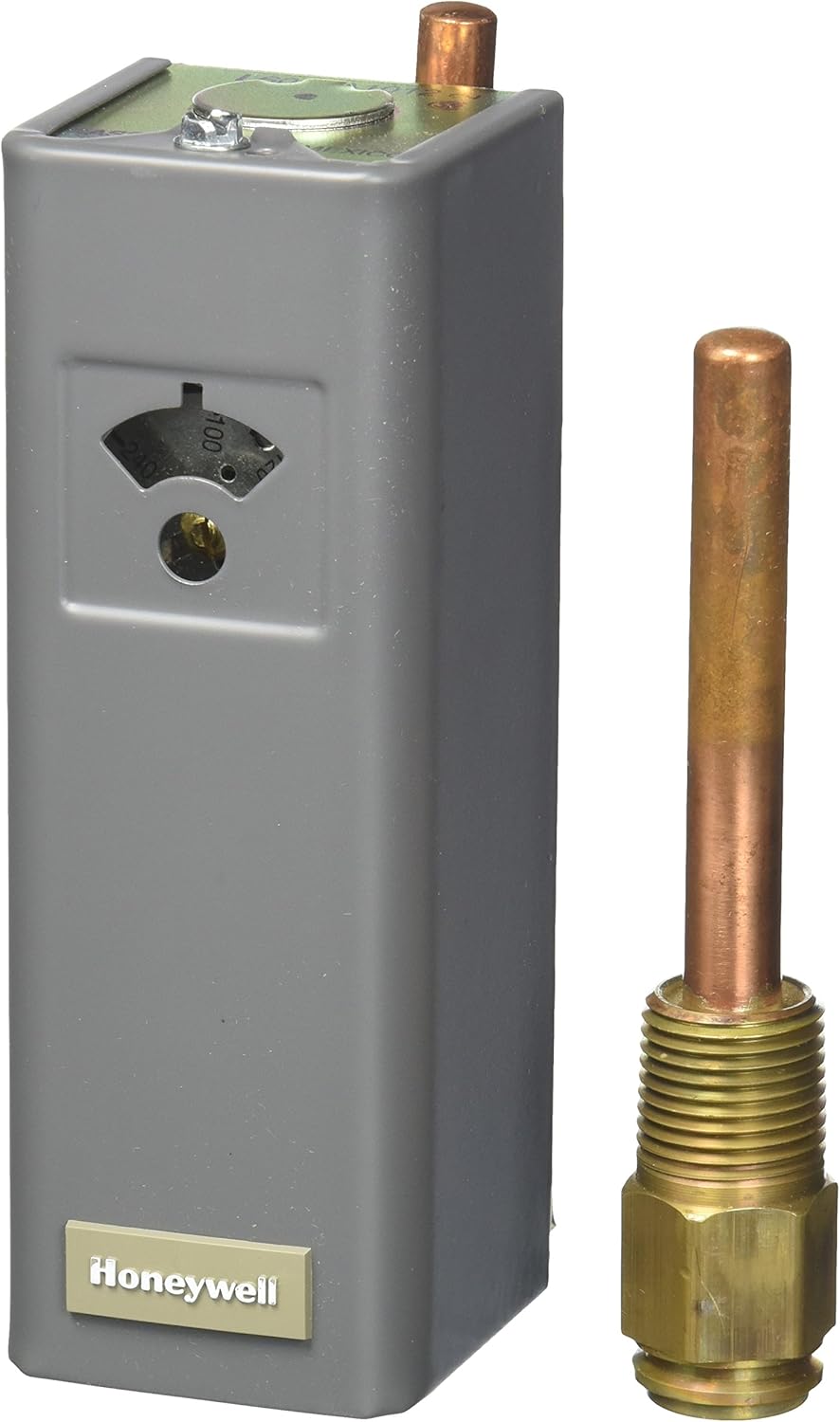

Honeywell L6006A1012 High/Low Limit Aquastat Controller for Residential Combustion

Product Description

The Honeywell L6006A1012 High/Low Limit Aquastat Controller is designed for residential combustion applications. It provides precise control over heating systems, ensuring optimal performance.

• Used for High/Low limit control
• Manual reset feature
• SPDT switching action

Product Highlights

This controller features a manual reset function and is suitable for both horizontal and vertical mounting. It includes a visible control point scale and an external adjustment screw for easy setting.

Product Information

Standard Information

• Type: Manual Reset
• Color: Gray
• Series: L6006

Technical Specifications

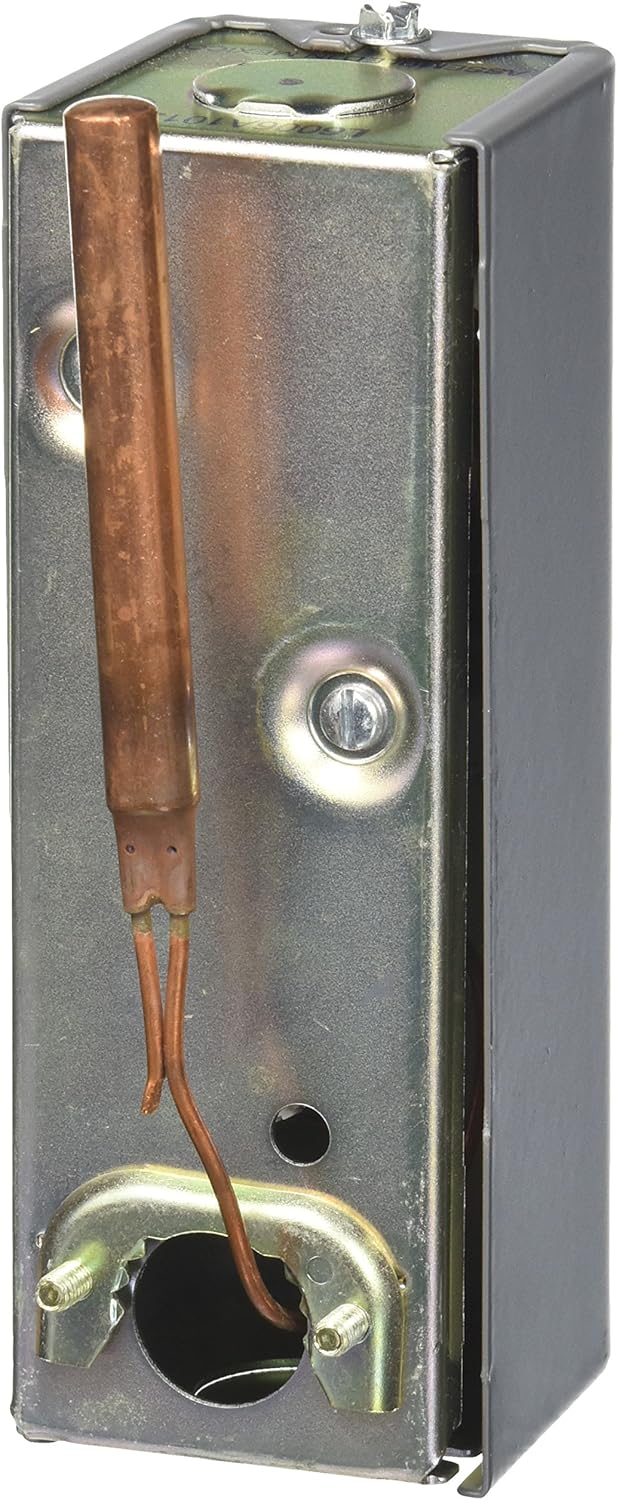

• Bulb Size: 3/8 x 2-7/8 Inch Copper
• Spud Size: 1/2 Inch NPT
• Dimensions: 5-5/8 Inch H x 2 Inch W x 2-1/8 Inch D
• Switch Type: SPDT
• Differential: 5 - 30 deg F
• Mounting Type: Horizontal/Vertical
• Switch Action: Snap-Acting
• Enclosure Type: Totally Enclosed
• Capillary Length: 1-1/2 Inch
• Insulation Depth: 3 Inch
• Temperature Range: 100 - 240 deg F
