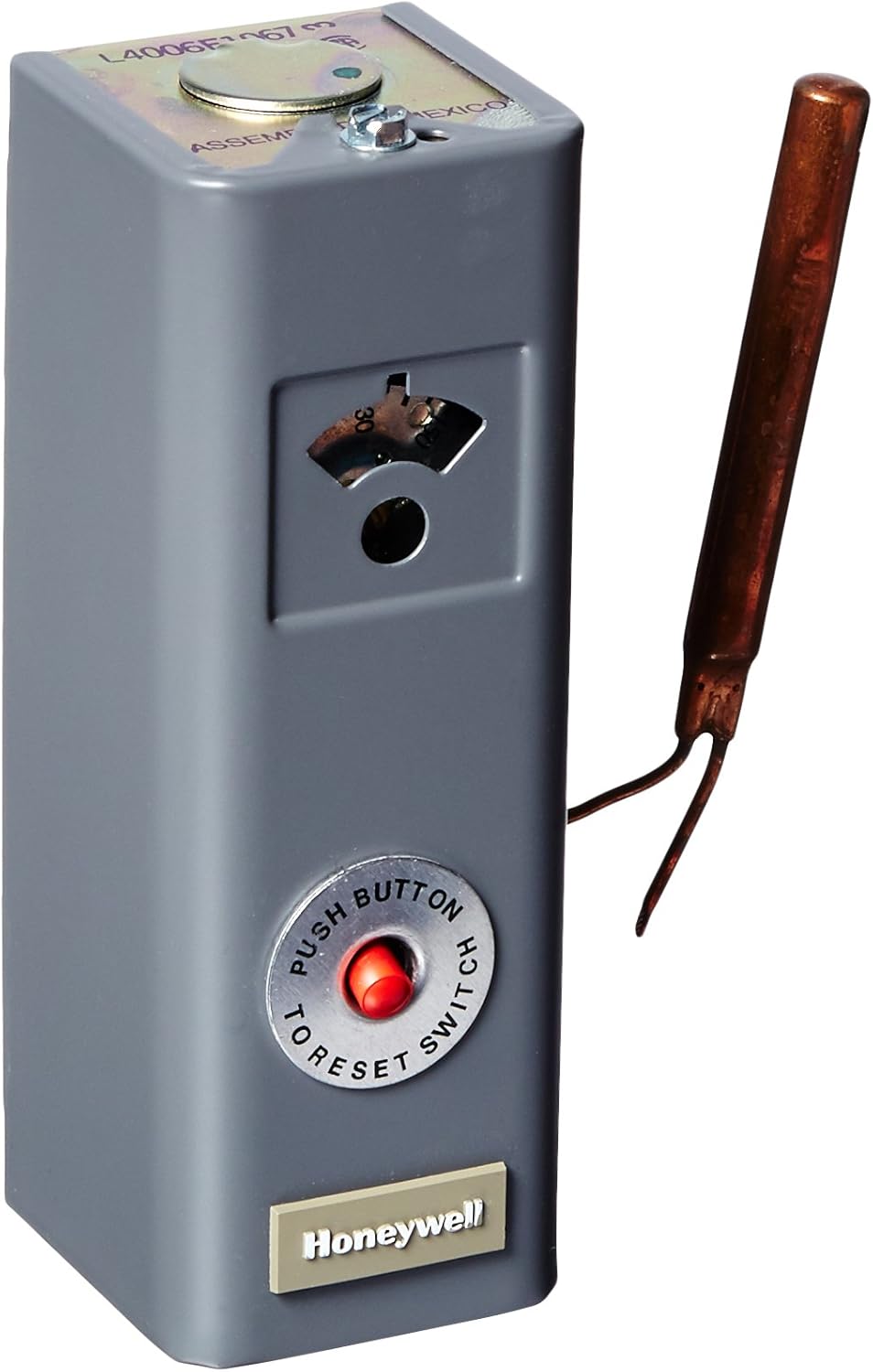

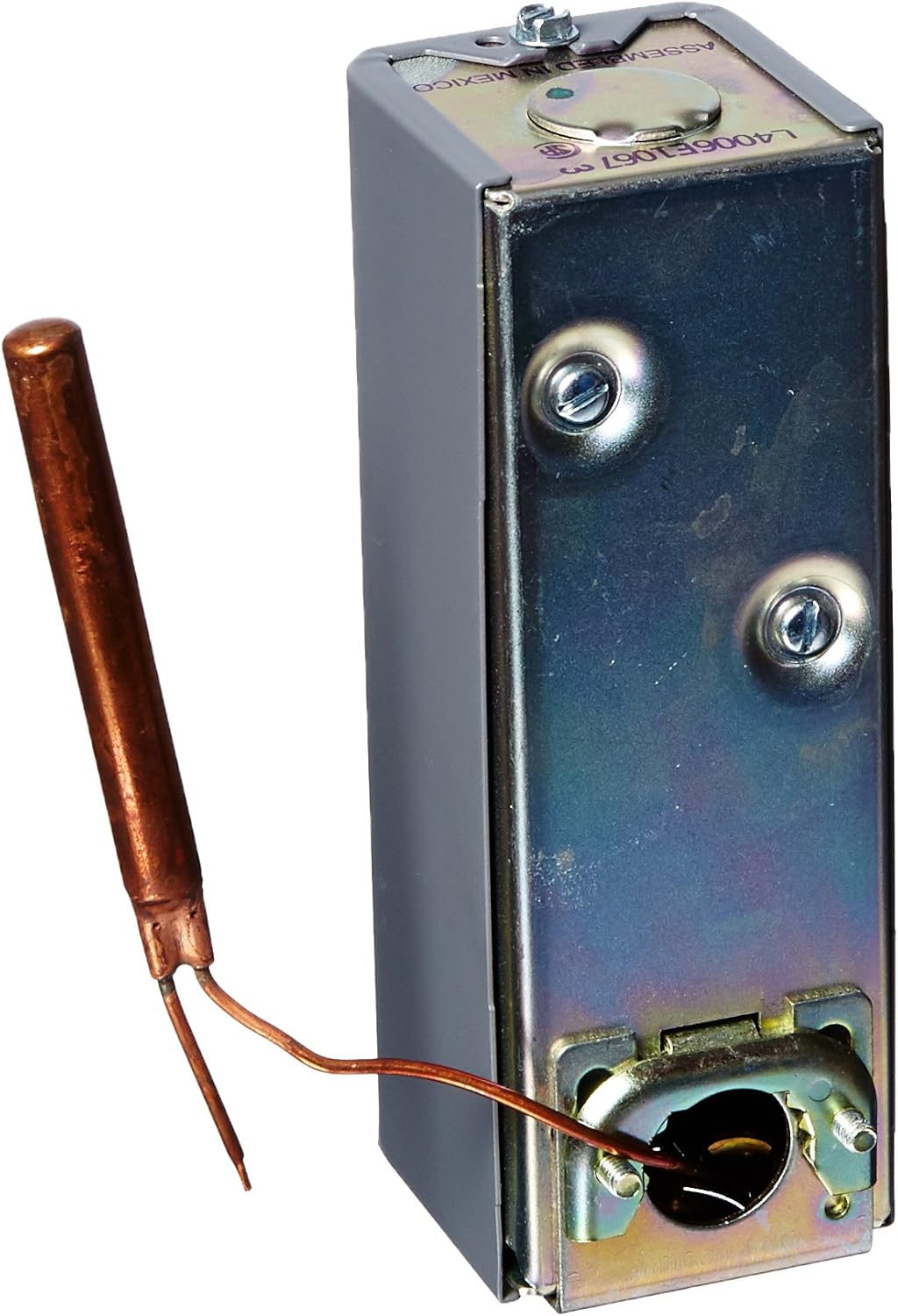

Honeywell L4006E1067 Boiler Control Aqua Stat 120-240V 3 Inches

Product Description

The Honeywell L4006E1067 Boiler Control Aqua Stat is designed for temperature regulation of liquids in boilers and tanks. It operates with a voltage range of 120 to 240 volts and features a 3-inch insulation depth for efficient performance.

• Honeywell L4006E1067
• Boiler Control Aqua Stat
• 120-240 volts

Product Highlights

This product includes a well adapter, tube of heat conductive compound, and supports both horizontal and vertical mounting. It breaks connectivity on temperature rise and comes factory-set at 250 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• Model: L4006E
• MPN: L4006E1067

Technical Specifications

• Type: Immersion Controller
• Voltage: 120-240
• Switch Type: SPST
• Temperature Range: 130-270 degrees Fahrenheit
• Differential: Manual Reset
• Dimensions: 5-5/8 inches H x 2 inches W x 2-1/8 inches D
• Capillary Length: 3 inches
• Bulb Size: 3/8 x 2-7/8 inch Copper
• Spud Size: 1/2 inch NPT
• Insulation Depth: 3 inches
• Application: High Limit Control
• Mounting Type: Horizontal/Vertical
• Switch Action: Breaks on Temperature Rise
