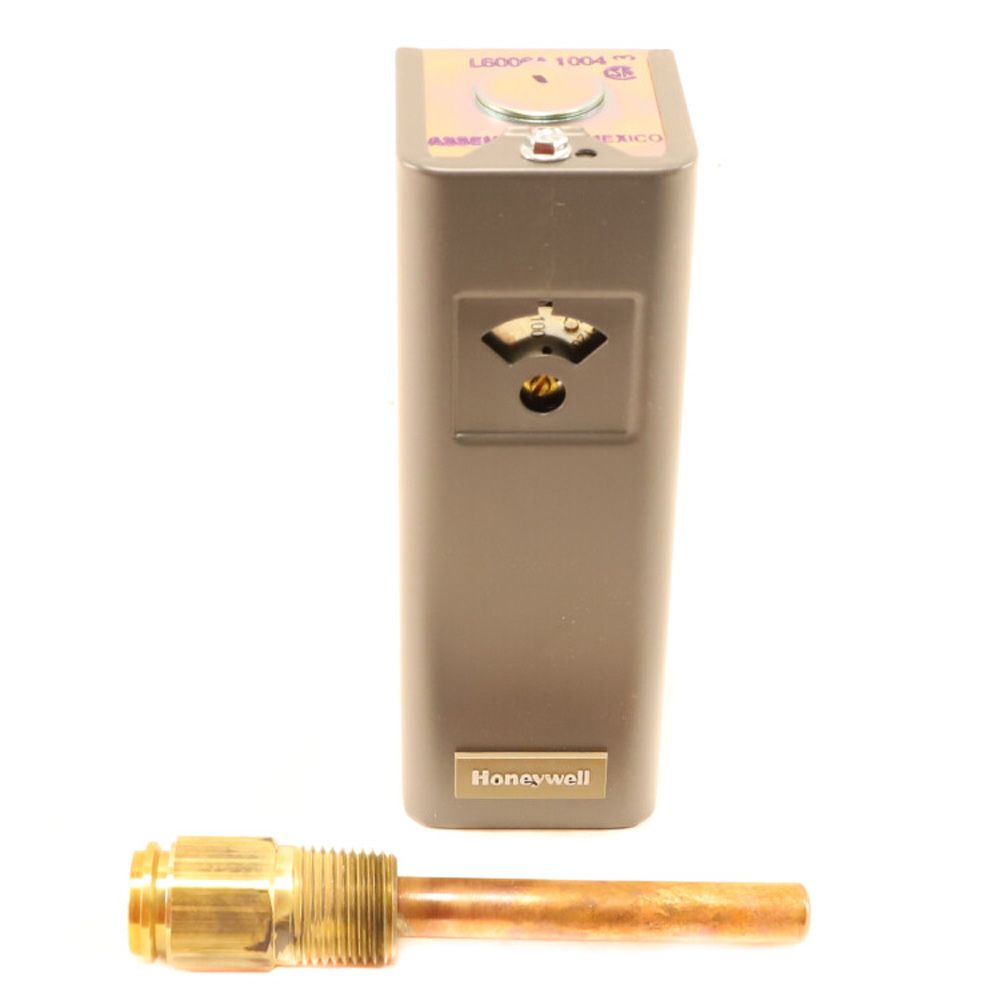

Honeywell L6006A1004 Aquastat Controller 100-240F 5df SPDT 1.5 Inch Capillary

Product Description

The Honeywell L6006A1004 Aquastat Controller is a versatile temperature controller designed for hydronic heating systems. It operates within a temperature range of 100 to 240 degrees Fahrenheit and features a 5-degree Fahrenheit differential. The SPDT switch action, combined with a 1.5-inch capillary length and a 3/8 x 2-7/8 inch copper bulb, makes it suitable for various applications, including boilers and tanks.

• Visible control point scale
• Horizontal or vertical mounting
• Includes 1/2 inch well

Product Highlights

Honeywell L6006A1004 Aquastat Controller is used for circulator control and high or low limit functions. Its snap-acting switches operate on temperature rise to setpoint, and it can be mounted horizontally or vertically.

Product Information

Standard Information

• Brand: Honeywell
• Model: L6006A
• MPN: L6006A1004

Technical Specifications

• Temperature Range: 100 - 240 deg F
• Differential: 5 def F
• Bulb Size: 3/8 x 2-7/8 Inch Copper
• Spud Size: 1/2 Inch
• Capillary Length: 1-1/2 Inch
• Switch Action: SPDT
• Mounting Type: Horizontal/Vertical
• Dimensions: 5-5/8 Inch H x 2 Inch W x 2-1/8 Inch D
