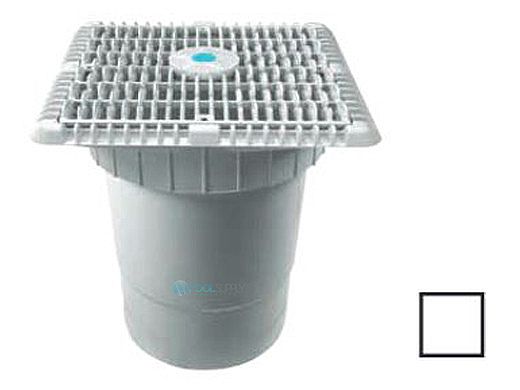

AquaStar WAV9WR101F AquaStar 9 Wave Anti-Entrapment Suction Outlet Cover & Vented Riser Ring and Double/Deep Frame with 6 Inch Socket Sump Bucket

Product Description

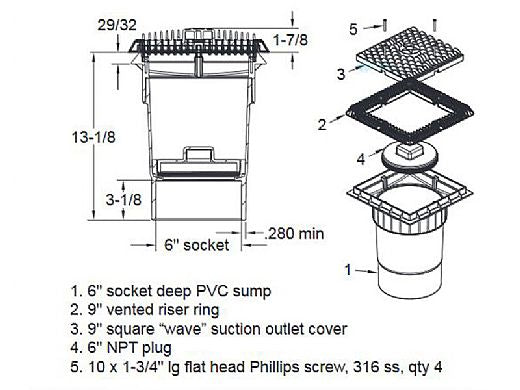

The AquaStar 9 Wave Anti-Entrapment Suction Outlet Cover, model WAV9WR101F, is a vital component for maintaining safe pool drainage. It features a vented riser ring and double/deep frame designed to work with a six-inch socket sump bucket. This cover supports both single and multiple drain installations.

• Fits multiple drain systems with proper installation.
• Meets VGB 2008 compliance for safety.
• Constructed from UV-resistant engineered polymers.

Product Highlights

This suction outlet cover is designed to enhance safety and efficiency in pool water systems.

Product Information

Standard Information

• Brand: AquaStar Pool Products
• MPN: WAV9WR101F

Technical Specifications

• Drain Compatibility: Suitable for single or multiple drains
• Sump Depth: Single to three foot
• Flow Rate: 224 GPM at 1.5 fps
• Opening Size: 48.4 square inches
• Compliance: Meets ANSI/APSP 16-2011 and NSF 50-2008 standards
• Screws: #316 stainless steel
• Material: UV-resistant engineered polymers
