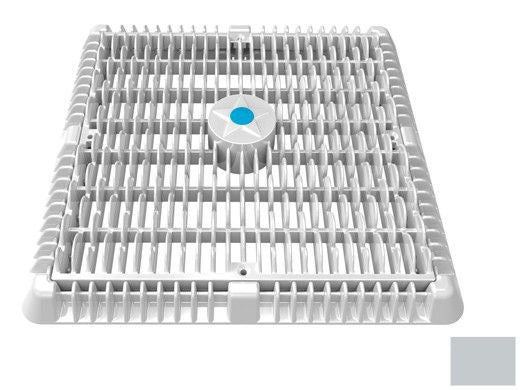

AquaStar WAV12WR103 12 Square Wave Suction Outlet Cover with Vented Riser Ring

Product Description

The AquaStar WAV12WR103 12 Square Wave Suction Outlet Cover with Vented Riser Ring is a reliable and efficient drain cover manufactured by AquaStar. Designed to retrofits most 12-inch square frames, it ensures safety and performance.

• 12-inch square with 3/4-inch deep frames
• UV-resistant engineered polymer materials
• Meets and exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a standards

Product Highlights

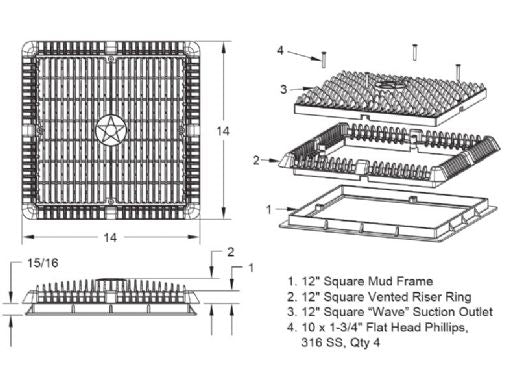

This product includes a 12-inch square mud frame, a vented riser ring, and the necessary screws for installation. It complies with VGB 2008 standards, making it easy to identify from on deck and underwater. Suitable for single floor or wall installation with a flow rate of 361 GPM at 1.3 fps.

Product Information

Standard Information

• Brand: AquaStar
• MPN: WAV12WR103
• Color: Light Gray
• Size: 12 inches x 12 inches

Technical Specifications

• Flow Rate: 361 GPM at 1.3 fps
• Sump Depth: 3 inches minimum
• Opening: 90.8 square inches
• UV Resistance: Engineered polymers
• Components: Cover, sump, screws
• Standards: ANSI/APSP 16-2011, NSF/ANSI 50-2009a
• Installation Frequency: Replace every five years
