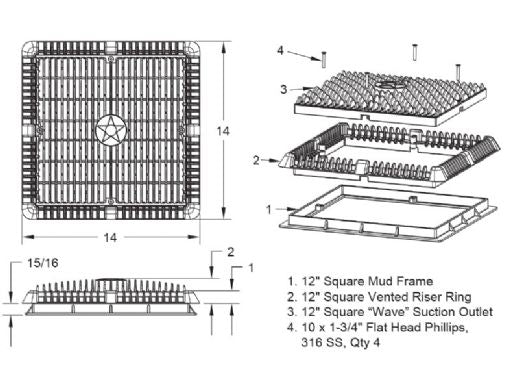

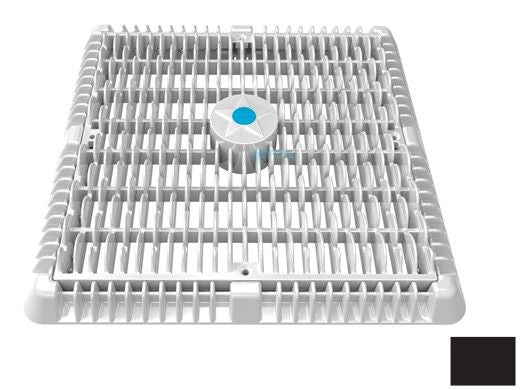

AquaStar WAV12WR102 AquaStar 12 Square Wave Suction Outlet Cover with Vented Riser Ring with Mud Frame (VGB Series)

Product Description

The AquaStar WAV12WR102 is a Square Wave Suction Outlet Cover designed for pool installations. This product features a vented riser ring and a mud frame. The cover is compliant with the VGB Series standards, ensuring safety in swimming pool environments.

• Flow rate of 361 gallons per minute at 1.3 feet per second
• Minimum sump depth of three inches
• Opening area of ninety point eight square inches

Product Highlights

This outlet cover fits most existing frames and is designed for long-term use. The cover is made from UV-resistant polymers.

Product Information

Standard Information

• Brand: AquaStar Pool Products
• MPN: WAV12WR102

Technical Specifications

• Flow Rate: 361 GPM at 1.3 fps
• Sump Depth: 3 inches minimum
• Opening Size: 90.8 square inches
• Material: UV-resistant engineered polymers
• Compliance: ANSI/APSP 16-2011 and NSF/ANSI 50-2009
• Replacement Interval: Replace drain cover every five years
