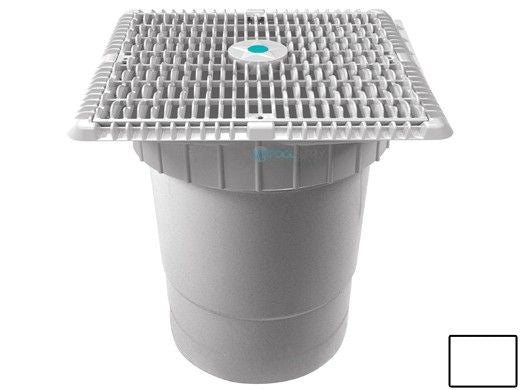

AquaStar WAV12WR101F AquaStar 12x12 Square Wave Grate with Vented Riser Ring with Double Deep Sump Bucket with 6 Socket (VGB Series)

Product Description

The AquaStar WAV12WR101F is a durable 12x12 Square Wave Grate with a vented riser ring. This model includes a double deep sump bucket with six sockets, designed for optimal performance in pool systems. This product is suitable for both single and multiple drain use, ensuring versatility in installation.

• Minimum sump depth is three inches.
• Flow rates of up to 361 gallons per minute at 1.3 feet per second.
• Meets VGB 2008 compliance standards for enhanced safety.

Product Highlights

This grate is manufactured from UV-resistant engineered polymers. It includes #316 stainless steel screws for durability and longevity. All components are compliant with ANSI/APSP standards and NSF certifications.

Product Information

Standard Information

• Brand: AquaStar Pool Products
• MPN: WAV12WR101F

Technical Specifications

• Dimensions: Twelve inches by twelve inches
• Sump Bucket Configuration: Double deep
• Socket Count: Six
• Opening Size: 90.8 square inches
• Installation Compatibility: Retrofits most existing frames
• Material: UV-resistant polymers
• Replacement Interval: Every five years
