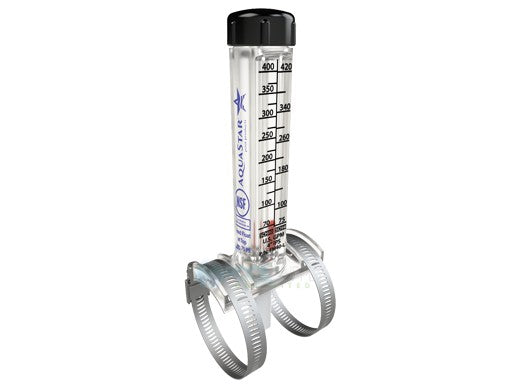

Aquastar Pool Products FM15 FlowStar Flow Meter Assembly 1-1/2 inches PVC Pipe

Product Description

Aquastar Pool Products FM15 FlowStar flow meter assembly is designed for 1-1/2" PVC pipe and measures line flow using a resistant PVDF internal float housed in a one-piece molded acrylic body. The saddle-mount design attaches to existing pipe and includes mounting clamps and a gasket for vertical installations. The unit is suitable for outdoor pool and water circulation systems and is available in multiple Schedule 40/80 pipe sizes.

• One-piece molded acrylic body with resistant PVDF internal float for flow measurement
• Saddle-mount installation with mounting clamps and gasket included for vertical pipe mounting
• Designed for outdoor pool and water circulation systems; available in Schedule 40/80 pipe sizes

Product Highlights

Saddle-mounted flow meter for 1-1/2" PVC with PVDF float; includes clamps and gasket

Product Information

Standard Information

• Brand: AQUASTAR POOL PRODUCTS
• Manufacturer Part Number: FM15

Technical Specifications

• Brand: Aquastar Pool Products
• Manufacturer Part Number: FM15
• Model Name: FlowStar
• Product Type: Flow meter assembly
• Pipe Size: 1-1/2"
• Available Pipe Sizes: 1-1/2", 2", 2-1/2", 3", 4" (Schedule 40/80)
• Body Material: One-piece molded acrylic
• Internal Float Material: Resistant PVDF
• Mounting Type: Saddle mount to existing pipe
• Mounting Hardware Included: Mounting clamps and gasket included
• Mount Orientation: Vertical
• Outdoor Suitable: Yes
