AQUASTAR POOL PRODUCTS 9MF105 9in Sq Mo Flow Suction Cover W/ Screws (Vgb Series)

Product Description

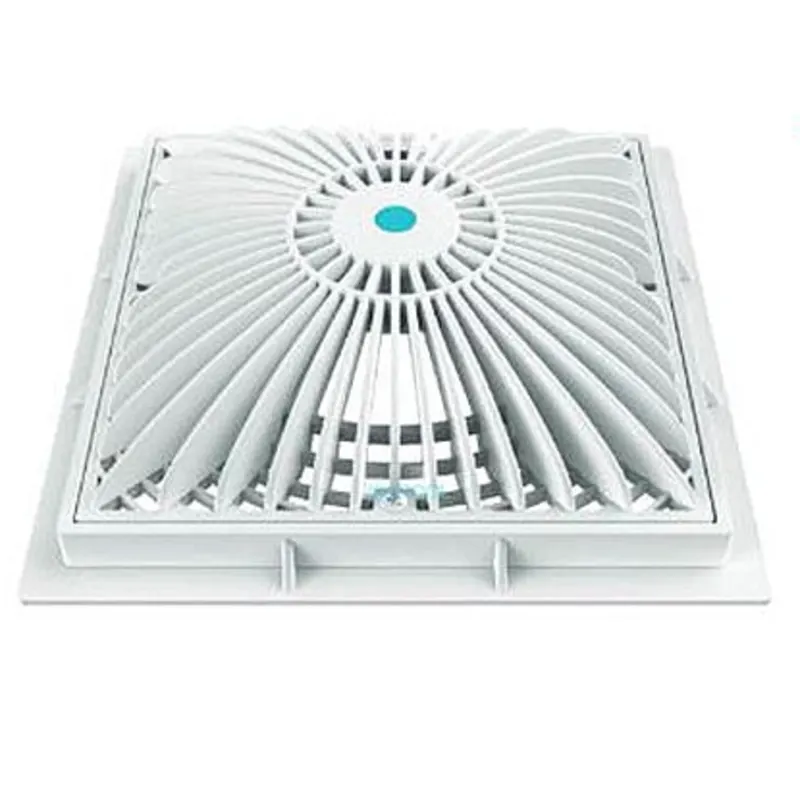

The AQUASTAR POOL PRODUCTS 9MF105 is a nine-inch square suction cover with screws, suitable for both single and multiple drain configurations. This cover can be easily installed on existing nine-inch square, three-quarter inch deep frames. It is made from UV-resistant engineered polymers, ensuring durability and compliance with established safety standards.

• Fits AquaStar (all standard nine-inch square), Pentair with three-quarter inch deep existing frames and a four screw hole pattern.
• Features a trademarked VGB compliance button for easy identification of VGB 2008 compliant cover.
• Includes #316 stainless steel screws for secure installation.

Product Highlights

Product Information

Standard Information

• Brand: AQUASTAR POOL PRODUCTS
• MPN: 9MF105

Technical Specifications

• Opening Size: 36.8 square inches
• Material: UV-resistant engineered polymers
• Screws: #316 stainless steel
• Standards: ANSI/APSP 16-2011 and NSF/ANSI 50-2009a
• Floor Flow Rate: 258 GPM at 2.3 fps
• Wall Flow Rate: 274 GPM at 2.5 fps
• Floor/Wall Flow Rate: 114.7 GPM at 1.0 fps
