Aquastar Pool Products 18MFNF101 4 9In Sq Mo Flow Suction Covers With Screws (VGB Series)

Product Description

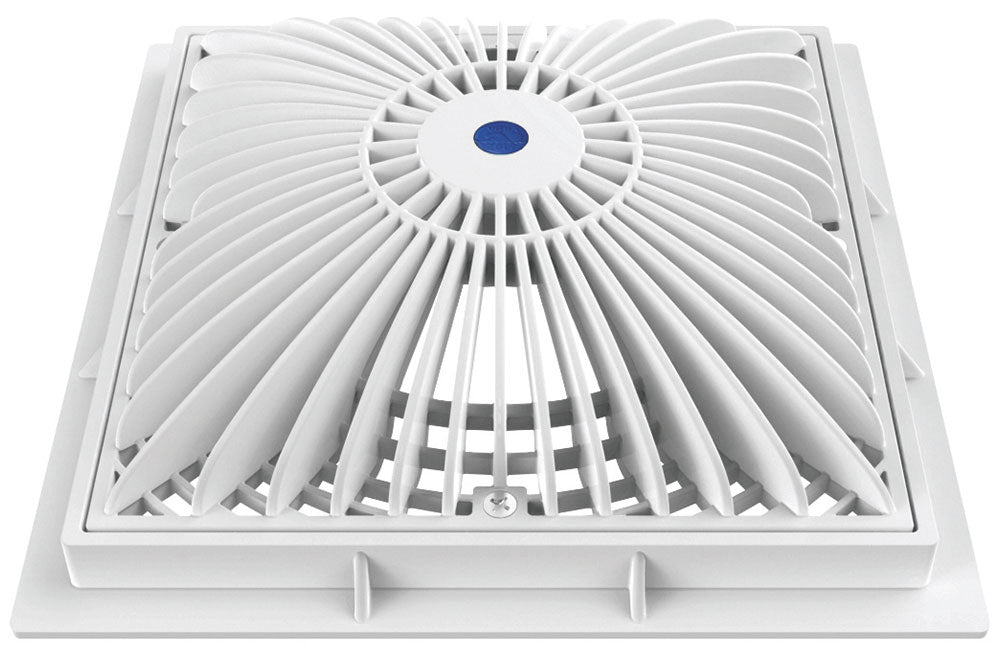

The AquaStar Pool Products 18MFNF101 is a Moflow square mud frame with suction outlet cover for 3/4 inch deep retrofit. Constructed from UV-resistant engineered polymer, this set includes an 18 inch drain frame and four 9 inch square Moflow suction outlet covers. It also features a trademarked VGB compliance button.

• Includes 18 Inch Drain Frame and four 9 Inch Square Moflow Suction Outlet Covers
• Constructed from UV-resistant engineered polymer
• Features a trademarked VGB compliance button

Product Highlights

This set is ideal for single or multiple drain use with a 6" sump depth / min. 3" pipe. All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure.

Product Information

Standard Information

• Brand: AQUASTAR POOL PRODUCTS
• Manufacturer Part Number: 18MFNF101

Technical Specifications

• Material: UV-Resistant Engineered Polymer
• Color: White

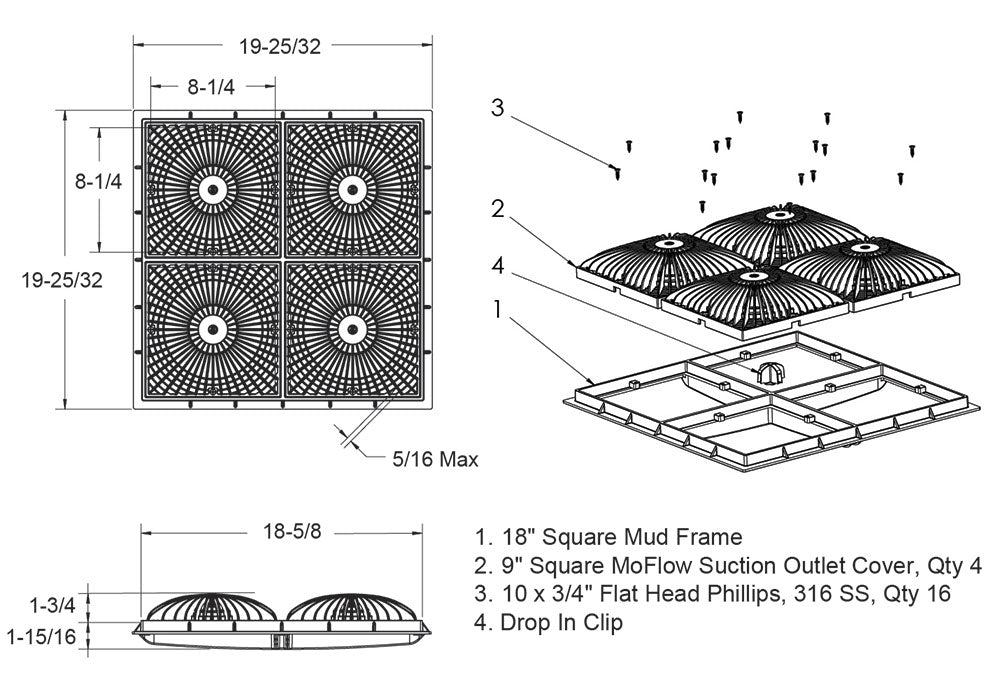

• Includes: 18 Inch Drain Frame, (4) 9 Inch Square Moflow Suction Outlet Cover, (16) #10 x 3/4 Inch Lg Flat Head Phillips Type A 316 Stainless Steel Screw, Four Grates
• CoverOpenArea: 147.1 sq-Inch
• FloorFlowRate: 293 gpm at 0.6 fps, 687.7 gpm at 1.5 fps, 458.5 gpm at 1 fps
• Forusewith: 3/4 Inch Deep Retrofit
• Item: Square Mud Frame with Suction Outlet Cover
• SubBrand: MoFlow
• Product Category: Main Drains
• Manufacturer: AquaStar
• Brand: AquaStar
• Part Number: APP18MFNF101
• MFG Number: 18MFNF101
• UPC: 0883612080604
• Series/Model: MoFlow
