Aquastar Pool Products 1216101SSB 16in Square Retrofit to 12in Frame W/Sump 2inx2.5in Bottom 3inx4in SD

Product Description

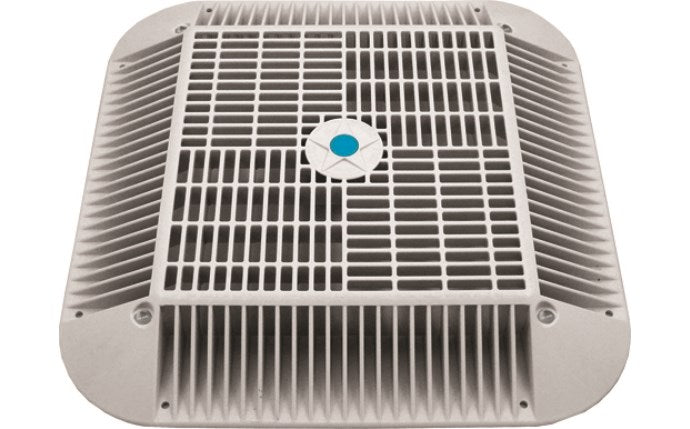

The AquaStar Pool Products 1216101SSB is a 16" square anti-entrapment suction outlet cover with a 3" sump that retrofits into most brands' existing 12" mud frames. It is ideal for retrofitting over existing sumps/frames up to 15" by anchoring directly into a concrete pool finish.

• 460 GPM at 1.5 fps floor flow rating
• 445 GPM at 1.4 fps wall flow rating
• 3" minimum sump depth

Product Highlights

This suction outlet cover meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure. Replace drain cover every five years from the date of installation.

Product Information

Standard Information

• Brand: AQUASTAR POOL PRODUCTS
• Manufacturer Part Number: 1216101SSB

Technical Specifications

• Brand: AquaStar Pool Products
• Application: Pool
• Channel: None
• Commercial, Residential, or Professional: Commercial
• Product Name: 16" Square Anti-Entrapment Suction Outlet Cover With 3" Sump
• Manufacturer Part Number: 1216101SSB
• Sku: API-25-2210
