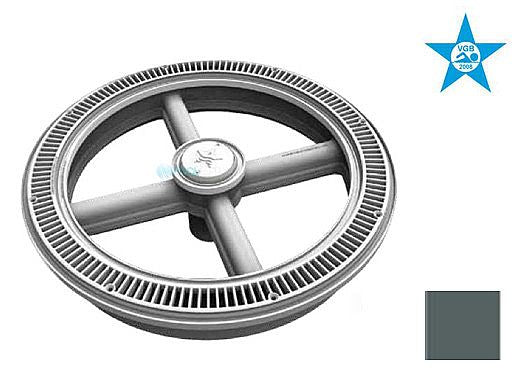

AquaStar FC105 Full Circle Suction Outlet Cover and One-Port Manufactured Sump (VGB Series)

Product Description

The AquaStar FC105 is a durable suction outlet cover designed for pools. This product is suitable for both single and multiple drain installations. It includes essential components to ensure safe and efficient operation.

• Designed for single or multiple drain use
• Unique design filled with plaster for seamless integration
• Manufactured from UV-resistant PVC

Product Highlights

This suction outlet cover features a disposable plaster shield that prevents debris from entering the sump. It is designed to retain its shape during pool finishing processes while providing a waterstop around the edges to prevent leaks.

Product Information

Standard Information

• Brand: AquaStar Pool Products
• MPN: FC105
• Product Link: View Product

Technical Specifications

• Flow Rate: 158 GPM at 1.2 fps
• Opening Size: 42 square inches
• Screws: #316 stainless steel
• Port Configuration: Bottom 2.5 spigot x 2 socket x 2 NPT
• Material: UV-resistant PVC
• Standards Compliance: ANSI/APSP 16-2011 and NSF 50-2008
• Color: Dark gray
