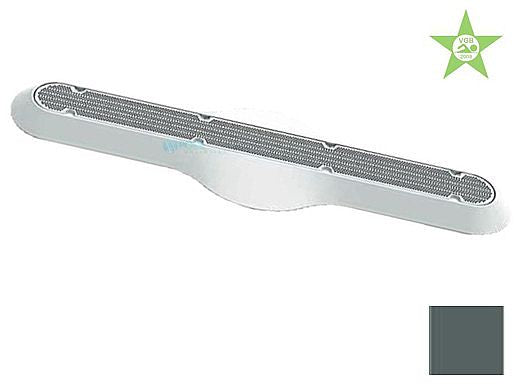

AquaStar 32PD105 Channel Drain Pinhole Anti-Entrapment Suction Outlet Cover 196 GPM Dark Gray

Product Description

The AquaStar 32PD105 is a channel drain pinhole anti-entrapment suction outlet cover, designed to ensure safety and compliance with the Virginia Graeme-Baker Pool and Spa Safety Act. Ideal for both commercial and residential pools, it provides essential anti-entrapment protection.

• High flow rates suitable for floor and wall installation: 196 GPM at 2.3 fps for floors, 88 GPM at 1.0 fps for walls.
• UV-resistant engineered polymers for enhanced durability.

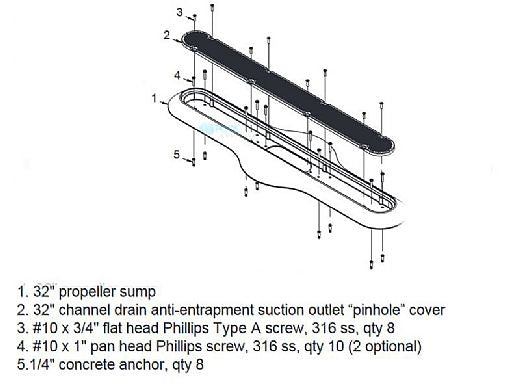

• No additional sump required, simplifying installation.

Product Highlights

Engineered to prevent pool and spa entrapments, this suction outlet cover supports single or multi-pump connection setups without the need for an additional sump, which drastically reduces installation complexity.

Product Information

Standard Information

• Compliance: Meets ANSI/APSP 16-2011, NSF 50-2008.
• Material: UV-resistant engineered polymers.

Technical Specifications

• Flow Rate (Floor): 196 gallons per minute at 2.3 feet per second.
• Flow Rate (Wall): 88 gallons per minute at 1.0 feet per second.

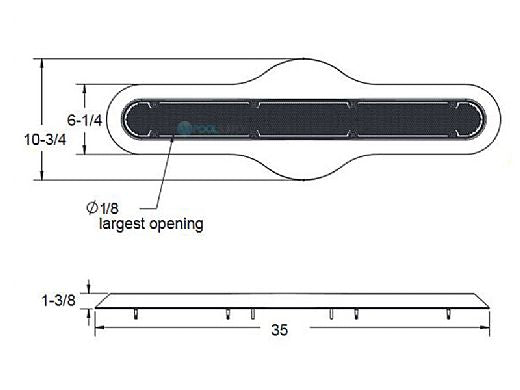

• Total Opening: 27.9 square inch.
• Color: Dark Gray.
