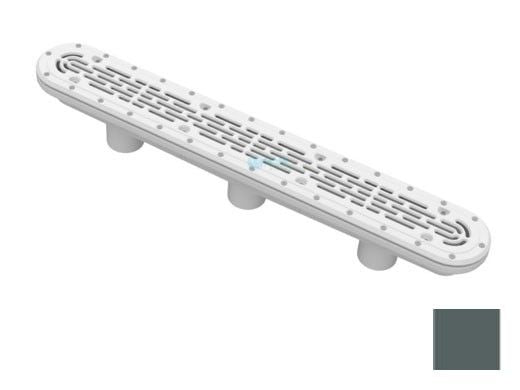

AquaStar 32CDFLV105 Channel Drain with Flat Grate Suction Outlet Cover and 3 Port Sump for Vinyl and Fiberglass

Product Description

The AquaStar 32CDFLV105 is a channel drain with a flat grate suction outlet cover. This product is designed to meet the Virginia Graeme-Baker Pool and Spa Safety Act. It features an unblockable suction outlet which ensures compliance with current safety standards.

• Single or multiple drain use
• 316 GPM floor rating at 3.9 fps
• Made from UV-resistant engineered polymers

Product Highlights

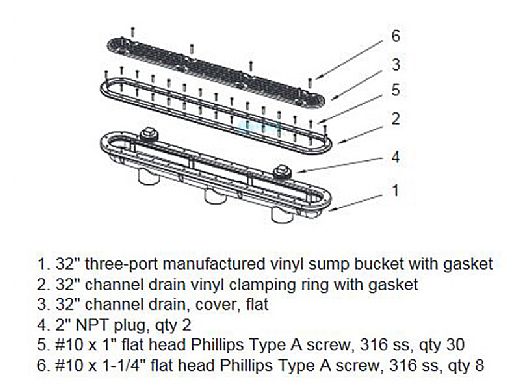

This AquaStar product is suitable for vinyl and fiberglass pools. It features a three-port design, easy installation, and a permanently attached gasket.

Product Information

Standard Information

• Brand: AquaStar Pool Products
• MPN: 32CDFLV105

Technical Specifications

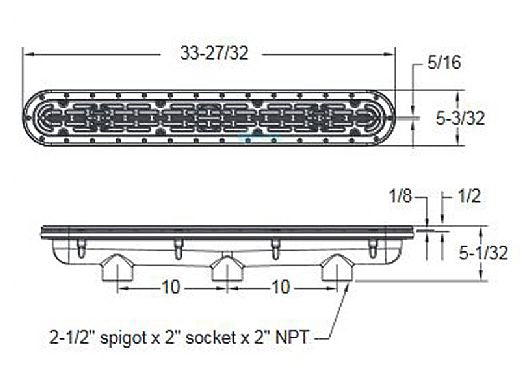

• Opening Size: 25.9 square inches
• Materials: Superior engineered polymers and stainless steel screws
• Flow Rates: Floor - 316 GPM at 3.9 fps, Wall - 208 GPM at 2.6 fps, Floor/wall - 122 GPM at 1.5 fps
• Installation Requirements: Use transitional glue for PVC pipe
• Replacement Schedule: Replace every five years from installation date
