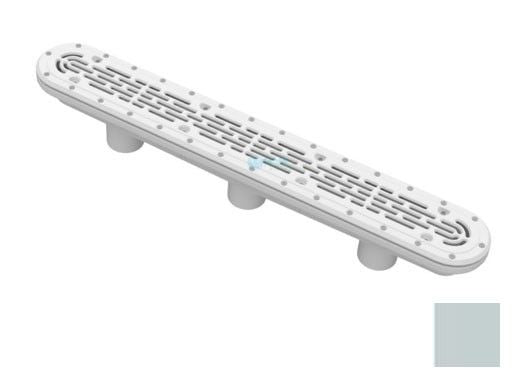

AquaStar 32CDFLV103 AquaStar 32 Channel Drain with Flat Grate Suction Outlet Cover and 3 Port Sump for Vinyl and Fiberglass | Light Gray
AquaStar 32CDFLV103 AquaStar 32 Channel Drain with Flat Grate Suction Outlet Cover and 3 Port Sump for Vinyl and Fiberglass | Light Gray

AquaStar 32CDFLV103 AquaStar 32 Channel Drain with Flat Grate Suction Outlet Cover and 3 Port Sump for Vinyl and Fiberglass | Light Gray

Brand: AQUASTAR POOL PRODUCTS
SKU: 32CDFLV103
Availability: In Stock

Ships same day if ordered by 12 pm
$311.42
$311.42
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The AquaStar 32CDFLV103 is a channel drain designed for vinyl and fiberglass pools. This durable drain meets the Virginia Graeme-Baker Pool and Spa Safety Act. It features a single, unblockable suction outlet and is suitable for both single and multiple drain installations.

  • Exceeds VGB mandate and ASME/ANSI A112.19.8a-2008 standard
  • Manufactured from UV-resistant polymers
  • Includes three ports for various plumbing needs

Product Highlights

This channel drain allows for efficient water flow and robust safety standards, making it a reliable choice for pool installations.

Product Information

Standard Information

  • Brand: AquaStar Pool Products
  • MPN: 32CDFLV103
Technical Specifications
Flow Rate
Single drain - 316 GPM at 3.9 fps; Wall - 208 GPM at 2.6 fps; Floor/wall - 122 GPM at 1.5 fps
Drain Opening
25.9 square inches
Material
UV-resistant engineered polymers
Connections
Three ports: two 2-inch OD, 2-inch ID Sanitary Steel; two 2-inch FPT threaded plugs included
Screws
#316 stainless steel
Maintenance
Replace every five years from installation
