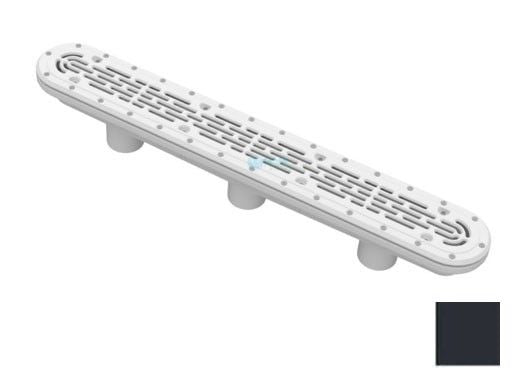

AquaStar 32CDFLV102 Channel Drain with Flat Grate Suction Outlet Cover and 3 Port Sump for Vinyl and Fiberglass

Product Description

The AquaStar 32CDFLV102 is a suction outlet cover compliant with the Virginia Graeme-Baker Pool and Spa Safety Act. This product features a single unblockable suction outlet designed to enhance safety in pool environments.

• Exceeds VGB mandate and ASME/ANSI A112.19.8a-2008 standards
• Suited for both single and multiple drain installations
• Constructed from UV-resistant engineered polymers

Product Highlights

Reliable, durable suction outlet cover designed for high flow and safety compliance.

Product Information

Standard Information

• Brand: AquaStar Pool Products
• MPN: 32CDFLV102

Technical Specifications

• Flow Rating: Floor - 316 GPM at 3.9 fps, Wall - 208 GPM at 2.6 fps, Floor/Wall - 122 GPM at 1.5 fps

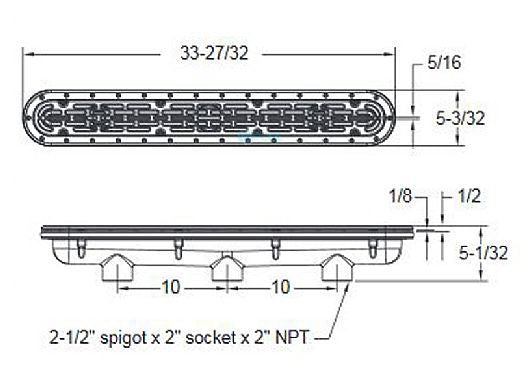

• Opening Size: 25.9 square inches
• Materials: Engineered polymers with stainless steel screws

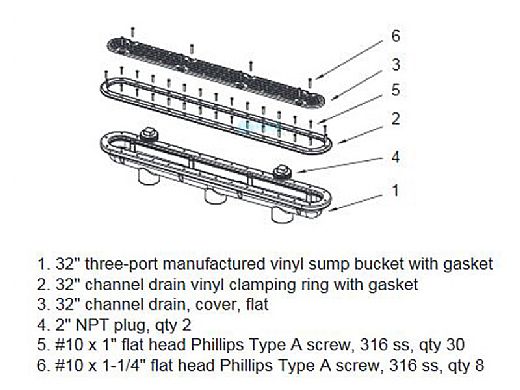

• Port Configuration: Three ports (bottom 2 OD, 2 ID S/S; inside 2 threaded FPT; two threaded plugs included)
• Installation: Requires transitional glue for PVC pipe attachment
