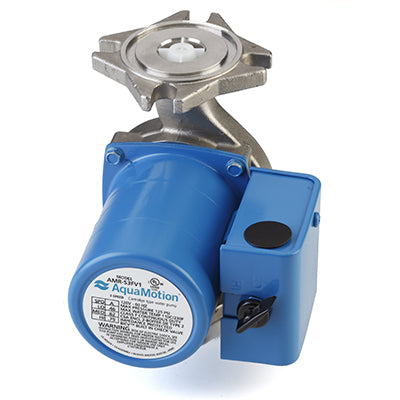

Aquamotion AMR-S3FV1 Stainless Steel 4 Bolt Flange 25mm BICV

Product Description

The Aquamotion AMR-S3FV1 is a stainless steel circulator pump designed for high efficiency and reliability. This pump comes with a universal four-bolt flange that streamlines installation and minimizes inventory. The AMR circulator operates with an amp draw ranging from zero point forty-six amps to zero point seventy-nine amps, maintaining performance across varying conditions. It features a built-in check valve for added convenience.

• Universal four-bolt flange for reduced inventory and cost
• Three-speed operation with a maximum flow rate of sixteen gallons per minute
• Compatible with models like Grundfos UPS15-58 and Taco 0015

Product Highlights

This circulator is ideal for various HVAC applications, ensuring effective circulation in hydronic systems.

Product Information

Standard Information

• Brand: Aquamotion
• MPN: AMR-S3FV1

Technical Specifications

• Material: Stainless Steel
• Connection Type: Flange, 4 Bolt Flange
• Pump Speed: Three Speed
• Max Head: 20 feet
• Max GPM Flow: 16 gallons per minute
• Check Valve: Yes
• Weight: 7.6 lbs
• Instruction Sheet: Instruction Sheet
• Submittal Data Sheet: Submittal Data Sheet
• Brochure: Brochure
