AQUAMOTION AMR-3FV1 Cast Iron 4 Bolt Flange Three Speed 25mm BICV

Product Description

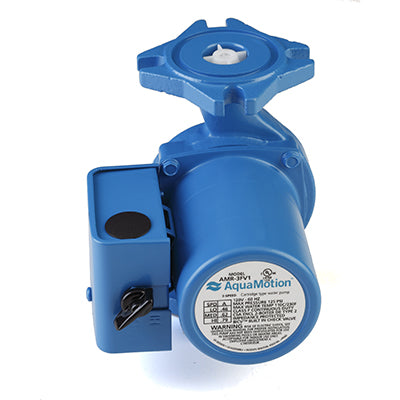

The AQUAMOTION AMR-3FV1 is a cast iron circulator with a universal 4-bolt flange design. This design simplifies installation and reduces inventory costs. The circulator operates at amp draws ranging from zero point four six amps to zero point seven nine amps, offering high performance and efficiency.

• Built-in BICV?�� check valve
• Replaces multiple models including Grundfos UPS15-58
• Three-speed operation for versatile applications

Product Highlights

The AMR-3FV1 circulator is suitable for various heating systems requiring efficient water flow management. It supports up to sixteen gallons per minute and can achieve a maximum head of twenty feet.

Product Information

Standard Information

• Brand: AQUAMOTION
• Material: Cast Iron

Technical Specifications

• MPN: AMR-3FV1
• Connection Type: Flange
• Pump Speed: Three Speed
• Max Head Feet: 20 feet
• Max GPM Flow: 16 gallons per minute
• Check Valve: Yes
• Ship Weight: 7.6 pounds
