AquaMotion AMH1K-RODRXT1 AQUA-SHIELD On Demand Stainless Flanged Circulator for Single Pipe Systems

Product Description

The AquaMotion AQUA-SHIELD AMH1K-RODRXT1 is a stainless flanged circulator designed for single pipe systems. This circulator is ideal for outdoor installation on tankless heaters without built-in pumps. It supports up to six hundred feet of total pipe length, making it suitable for various residential or commercial applications. The product features a ten-foot line cord, ensuring flexibility during installation.

• Compatible with tankless heaters without built-in pumps.
• Designed for a maximum flow rate and total pipe length of six hundred feet.

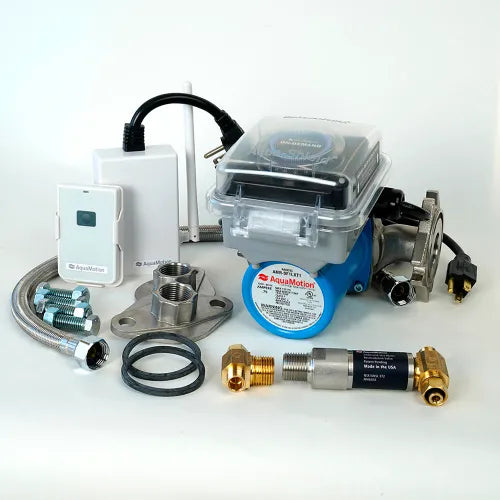

• Includes a bypass valve kit and stainless flanges for easy installation.

Product Highlights

This circulator includes a locking device for anti-tampering and is equipped with a timer that activates the system as needed. Additionally, it complies with CA Title 24 and provides an efficient solution for hot water recirculation.

Product Information

Standard Information

• Brand: AquaMotion
• Part Number: AMH1K-RODRXT1

Technical Specifications

• Material: Stainless Steel
• Voltage: 120 V
• Amperage: 0.79 A
• Horsepower: 0.04
• Gallons per Minute: 16 gal/min
• Head: 21 ft
• Discharge Connection Size: Flange in
• Inlet Connection: Flange in
