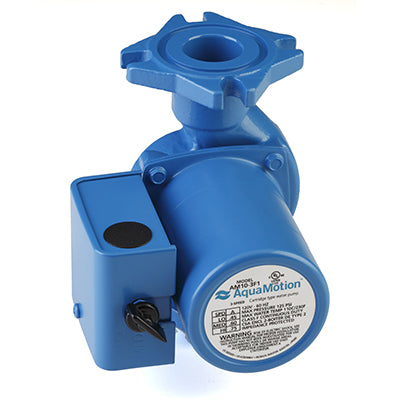

AQUAMOTION AM10-3F1 Cast Iron 4 Bolt Flange Three Speed Pump

Product Description

The AQUAMOTION AM10-3F1 is a cast iron 4 bolt flange circulator designed for efficient pumping. This model features amp draws from 0.45 amps to 0.75 amps, ensuring both high performance and high efficiency during operation. The universal design simplifies installation while reducing costs and inventory needs. It is a suitable replacement for Taco 0010 circulators and similar models.

• Durable cast iron construction
• Three speed operation
• Max head of twelve feet and flow rate of thirty-one gallons per minute

Product Highlights

Ideal for heating applications, the AM10 circulator provides reliable circulation with minimal energy use.

Product Information

Standard Information

• Brand: AQUAMOTION
• Material: Cast Iron
• Connection Type: Flange, 4 Bolt Flange

Technical Specifications

• MPN: AM10-3F1
• Pump Speed: Three Speed
• Max Head: 12 feet
• Maximum Flow Rate: 31 gallons per minute
• Weight: 7.9 pounds
• Curves: View Curves
• Instruction Sheet: Download Instruction Sheet
• Brochure: Download Brochure
