Aqualine PRV4-150-LF Lead Free Pressure Regulator 1-1/2 inches Double Union

Product Description

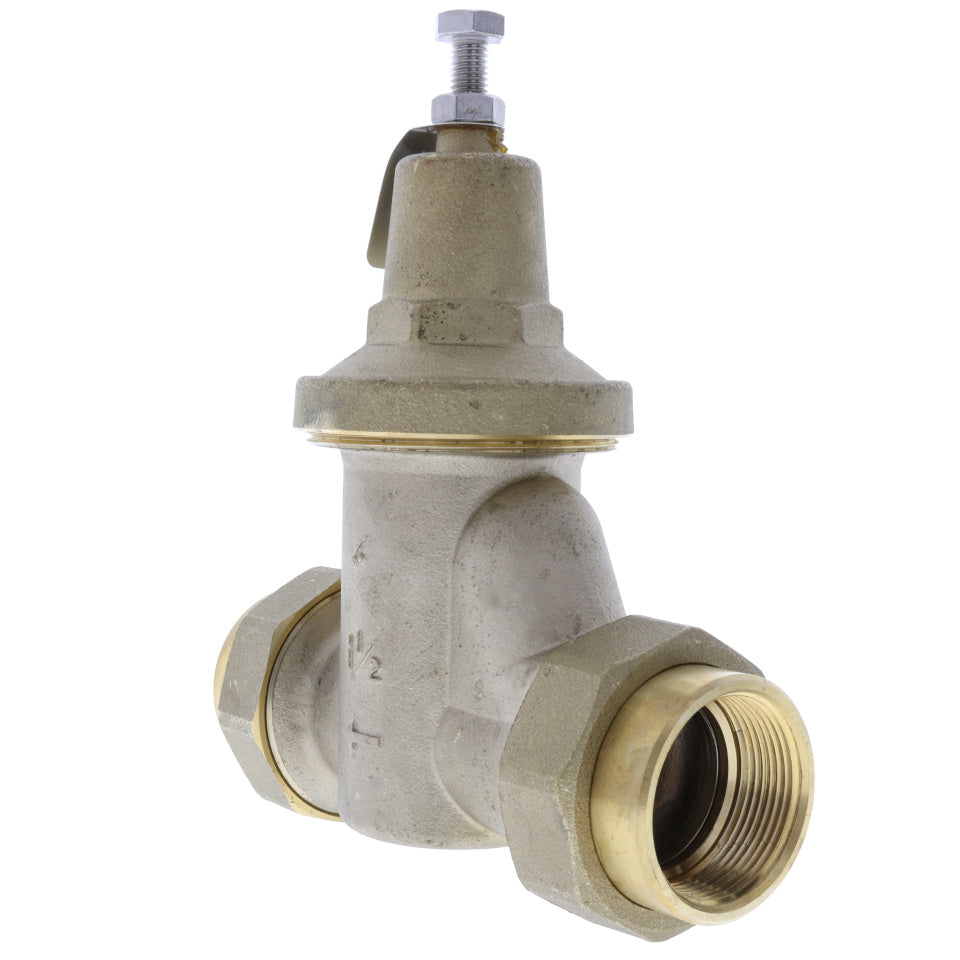

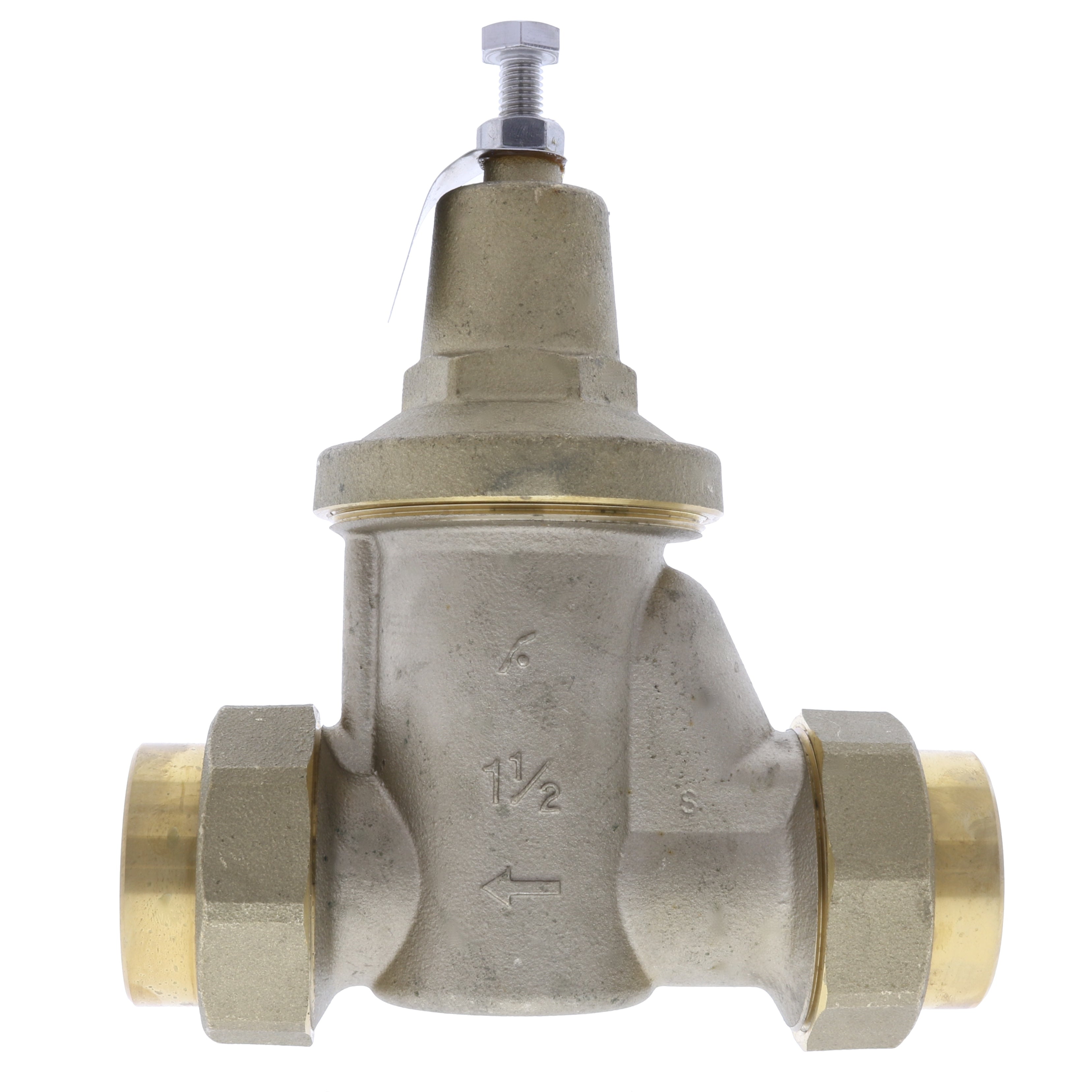

The Aqualine PRV4-150-LF is a lead-free pressure regulator with a 1-1/2" double union connection. It is designed to reduce pressure in plumbing and irrigation systems. The unit is adjustable from 25 to 75 PSI and factory preset at 50 PSI. It features a stainless steel nut and brass bonnet.

• Pressure Reducing Valve
• Nominal Size 1-1/2 Inch x 1-1/2 Inch
• End Connection Union x Union

Product Highlights

This lead-free brass pressure regulator is suitable for plumbing and irrigation applications. It features double union connections and is adjustable from 25 to 75 PSI.

Product Information

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: PRV4-150-LF

Technical Specifications

• Size: 1-1/2" Double Union
• Item #: PRV4-150-LF
• Pressure Rating: 25 to 75 PSI
• End Connection: Union x Union
• Nominal Size: 1-1/2 Inch x 1-1/2 Inch
• Inclusions/Features: SSNB Brass Bonnet
• Application: Plumbing, Irrigation
• Lead-Free: Yes
• Type: Pressure Reducing Valve
• Max Cold Water Inlet Pressure: 300 PSI
• Max Flow Rate - 1": 50 GPM
• Max Water Temperature: 180 F
• Reduced Pressure Range: Adjustable from 25 - 75 PSI
• Max Flow Rate - 3/4": 30 GPM
