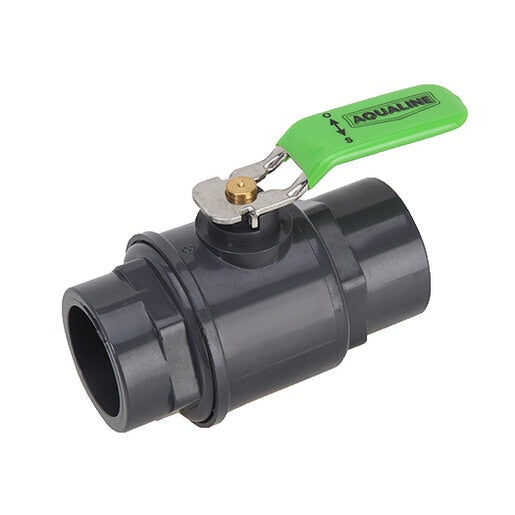

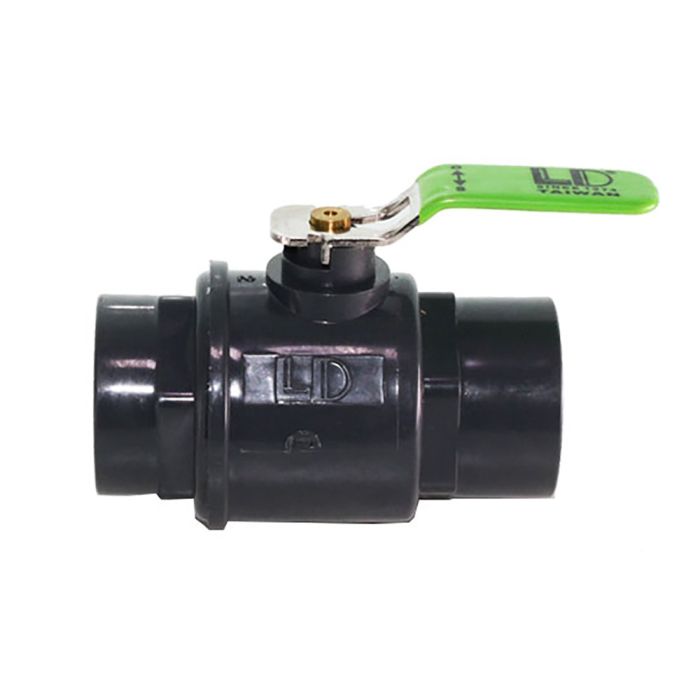

Aqualine PBVL-100S PVC Ball Valve 1 in. Slip

Product Description

The Aqualine PBVL-100S PVC Ball Valve adjusts differential pressure between inlet and outlet connections to the irrigation flow line, ensuring even the heaviest organic fertilizers and supplements can be pulled from the tank. The quarter-turn design allows hassle-free operation and is ideal for residential, commercial, agricultural, and light industrial applications.

• Maximum Pressure: 150 PSI
• Excellent flow characteristics
• High chemical resistance

Product Highlights

This 1-inch plastic ball valve features a grey schedule 80 PVC construction and a single handle design for low operating torque.

Product Information

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: PBVL-100S
• Country of Origin: Taiwan

Technical Specifications

• Brand: Aqualine
• Product Type: Ball Valves
• Series: Slip Plastic Ball Valve Lever Handle
• Working Pressure: 150 PSI
• Flow Rate: 0 - 22 GPM
• Size: 1 in.
• Connection: Slip
• Connection Type: Slip x Slip
• Pressure Rating: 235 PSI
• Body Material: PVC
• Type: Ball
• Operating Type: Manual
• Connection 2 Type: Slip
• Connection 2 Size: 1 in.
• Maximum Flow Rate: 22 GPM
• Maximum Working Temperature: 73 F
• Item: Manual Valve
• Height: 3-1/4 in.
• Width: 5-3/4 in.
