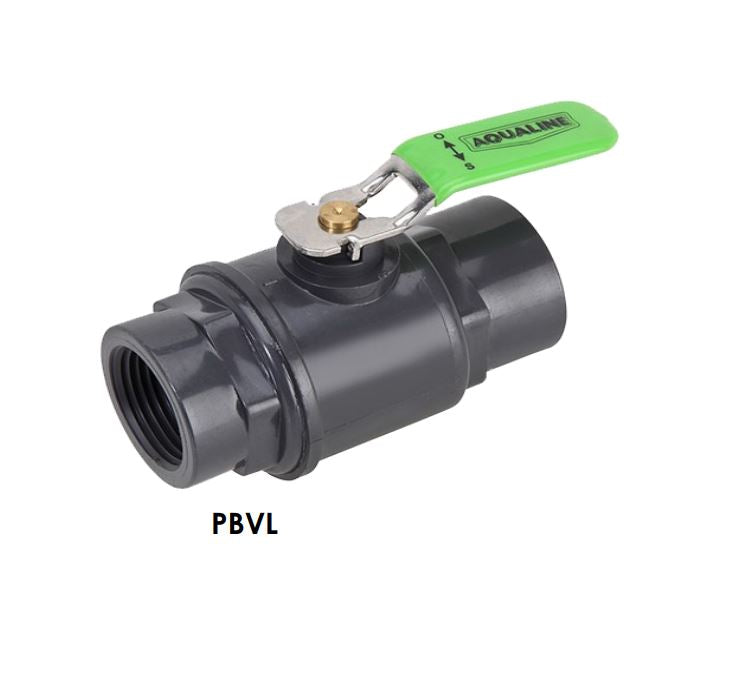

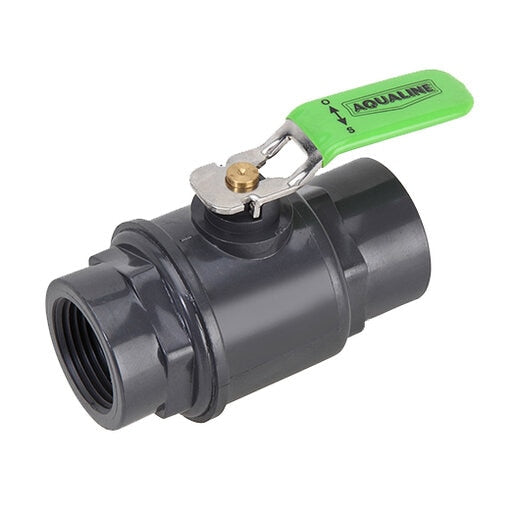

Aqualine PBVL-075 PVC Ball Valve 3/4 in. FPT

Product Description

The Aqualine PBVL-075 3/4" plastic ball valve features threaded connections. These ball valves adjust the differential pressure between the inlet and outlet connections to the irrigation flow line, ensuring heavy organic fertilizers and supplements can be pulled from the tank. Ideal for residential, commercial, agricultural, and light industrial applications.

• 3/4" Plastic Ball Valve (Threaded)
• Maximum Pressure: 150 PSI
• Stainless steel lever handle to prevent accidental turning

Product Highlights

The Aqualine ball valve is a maintenance free sealed unit with excellent flow characteristics and high chemical resistance. It features a single handle design for low operating torque and EPDM O-rings for a leak-free connection.

Product Information

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: PBVL-075
• Country of Origin: United States

Technical Specifications

• Brand: Aqualine
• Product Type: Ball Valves
• Series: Plastic Ball Valve Lever Handle
• Working Pressure: 150 PSI
• Flow Rate: 0 - 22 GPM
• Size: 3/4 in.
• Connection: FPT
• Connection Type: Fnpt
• Pressure Rating: 150 PSI
• Body Material: PVC
• Type: Ball Valve
• Operating Type: Manual
• Connection 2 Type: Fnpt
• Connection 2 Size: 3/4 in.
• Maximum Flow Rate: 22 GPM
• Maximum Working Temperature: 73 F
• Item: Manual Valve
• Regulated: No
• Material: PVC
• Handle: Stainless Steel Lever
• Schedule: 80
• Valve Operation: Manual
• Diameter: 3/4 in
• Country of Origin: United States
