Aqualine GPN-75-300 Galvanized Steel Pipe Nipple Sch 40

Product Description

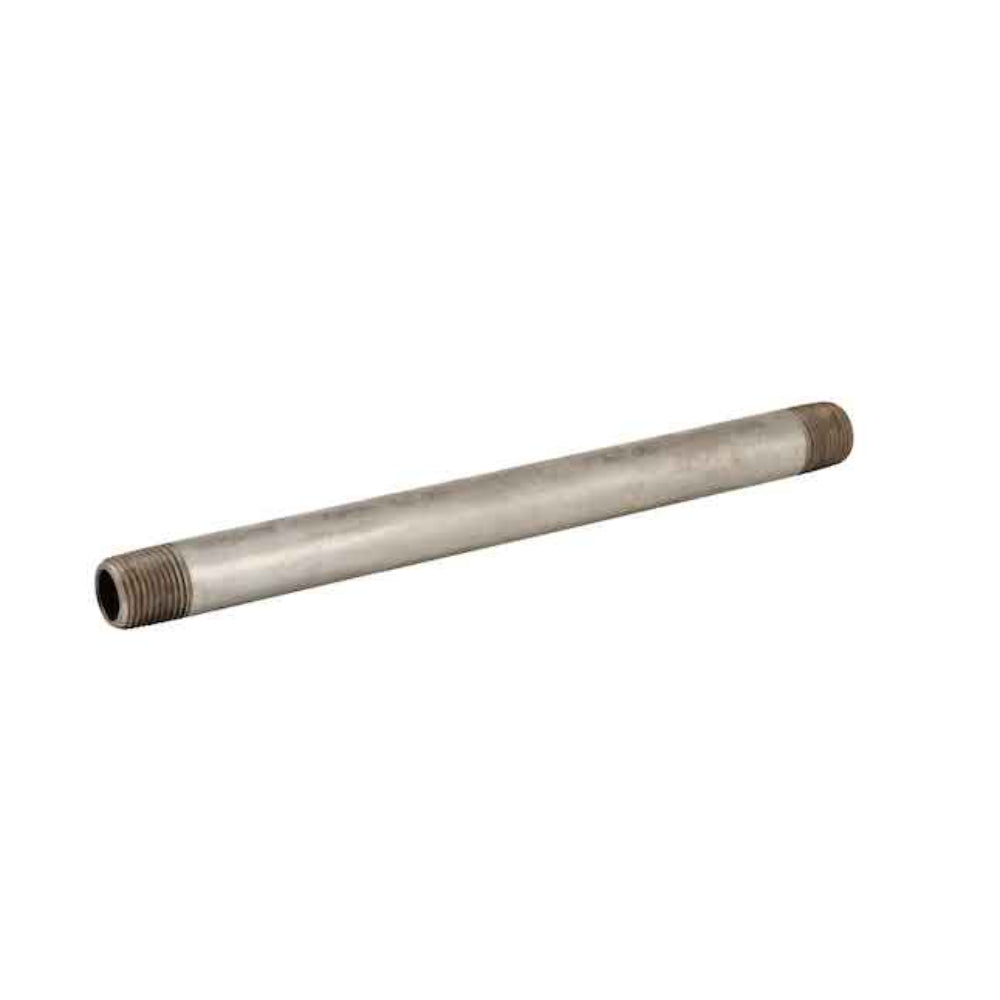

The AQUALINE GPN-75-300 is a Schedule 40 galvanized steel pipe nipple measuring 0.75 inches in diameter by 30 inches in length. It is used to connect sections of threaded pipe in water supply, gas distribution, and mechanical systems. The hot-dip galvanized finish provides corrosion resistance suitable for wet or moderately corrosive environments. Licensed plumbers, pipefitters, and HVAC technicians install this nipple as a standard threaded extension or close connector between fittings, valves, and equipment in both new construction and retrofit applications. At 2.6 pounds, it is a solid, full-length nipple rather than a close or short nipple.

This nipple is suited for residential and light commercial plumbing, hydronic heating, gas piping, and general mechanical systems where a 0.75-inch threaded steel connection is required. The 30-inch length makes it useful in applications where a longer rigid run between two threaded fittings is needed without cutting and threading field pipe. It is commonly installed in boiler rooms, mechanical rooms, utility spaces, and outdoor exposed piping where galvanized protection is preferred over black iron.

Key Features

• Schedule 40 wall thickness for full-strength threaded connections
• Galvanized finish for corrosion resistance in wet and outdoor environments
• 0.75-inch nominal pipe size with standard NPT threads on both ends
• 30-inch length suits longer rigid runs without field threading
• Order increment of 1 for single-piece purchasing

Compatibility

Designed as a standard NPT-threaded replacement or new-installation nipple compatible with 0.75-inch Schedule 40 threaded pipe fittings, valves, and couplings used in plumbing, gas, and mechanical piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local plumbing codes and the International Plumbing Code (IPC) or International Fuel Gas Code (IFGC) as applicable. Shut off water or gas supply and depressurize the line before removing or installing any threaded nipple. Apply an approved thread sealant or PTFE tape to the male threads before making up the joint. Do not over-tighten threaded connections, as this can crack fittings or distort threads.

Technical Specifications

• Nominal Pipe Size: 0.75 inches
• Length: 30 inches
• Schedule: 40
• Material: Galvanized Steel
• Weight: 2.6 pounds
• UPC: 675135213306

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: GPN-75-300
