Aqualine GPN-40-C Galvanized Steel Pipe Nipple 4 in Close Sch 40

Product Description

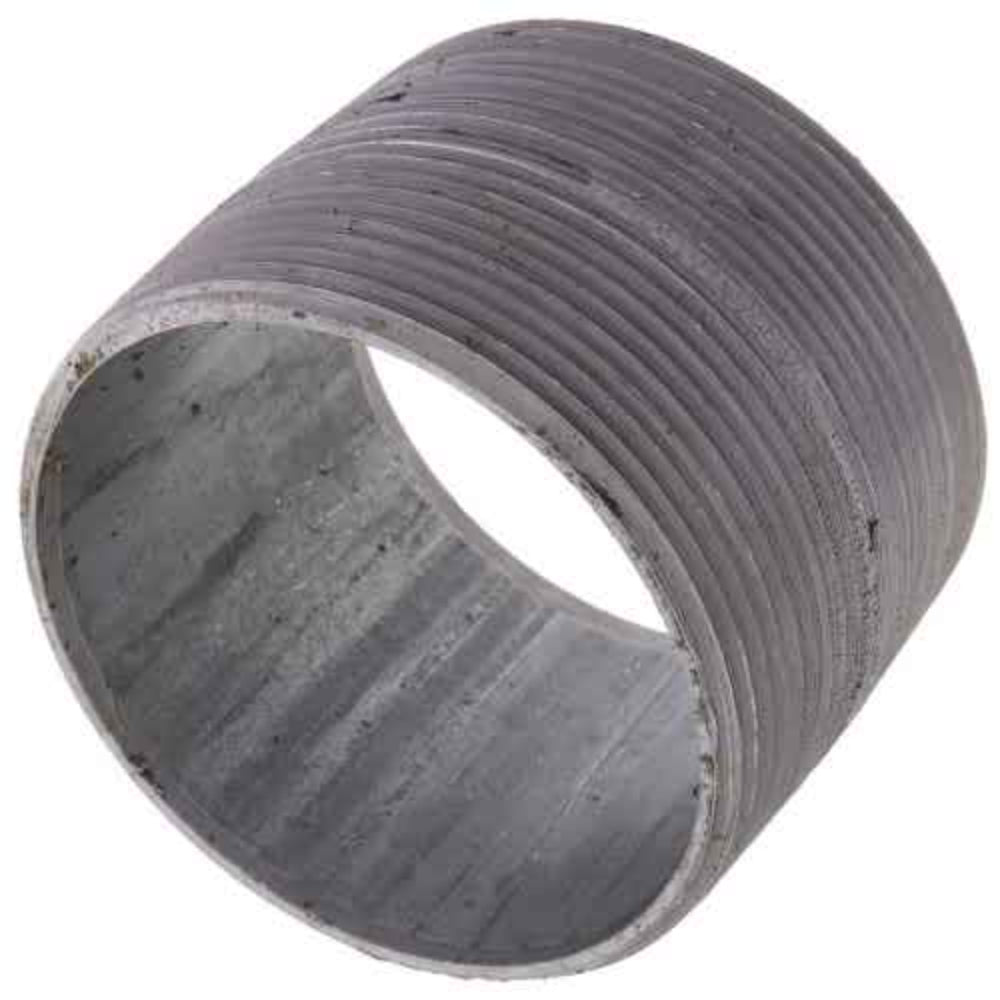

The AQUALINE GPN-40-C is a close-pattern galvanized steel pipe nipple manufactured to Schedule 40 wall thickness with a 4-inch nominal pipe size. A close nipple has no unthreaded center section — the male NPT threads on each end meet at the midpoint, making it the shortest possible threaded connector for a given pipe size. This fitting is used to join two female-threaded fittings with minimal separation. Licensed plumbers and pipefitters install this type of nipple in water supply, hydronic, and general-purpose piping systems where a tight, low-profile threaded connection is required.

The GPN-40-C suits residential and light commercial plumbing and mechanical installations. Close nipples in Schedule 40 galvanized steel are commonly installed at fixture connections, pump inlets and outlets, boiler piping, and anywhere a direct back-to-back fitting arrangement is needed. The hot-dip galvanized coating provides corrosion resistance for potable water, recirculation, and HVAC hydronic applications. This fitting is not recommended for high-pressure steam service without confirming local code allowances.

Key Features

• Close-pattern design — no exposed unthreaded center, minimizes installed length
• Schedule 40 wall thickness for standard-service pressure ratings
• Galvanized steel construction for corrosion resistance in wet service
• Male NPT threads on both ends for compatibility with standard female-threaded fittings
• 4-inch nominal pipe size suits larger-diameter plumbing and mechanical piping runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 40 threaded galvanized steel piping systems using standard NPT connections.

Installation Notes

Installation is performed by a licensed plumber or pipefitter in accordance with the applicable edition of the International Plumbing Code (IPC) or local jurisdiction requirements. Shut off and depressurize the piping system completely before removing or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to the male threads before assembly. On close nipples, use strap wrenches or chain wrenches rather than pipe wrenches to avoid damaging the threads, since there is no unthreaded grip surface.

Technical Specifications

• Nominal Pipe Size: 4 inches
• Pattern: Close
• Schedule: 40
• Material: Galvanized Steel
• Thread Type: NPT (both ends)
• Weight: 2 pounds
• UPC: 675135123056

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: GPN-40-C
