Aqualine GPN-125-40 Galvanized Steel Nipple Sch 40

Product Description

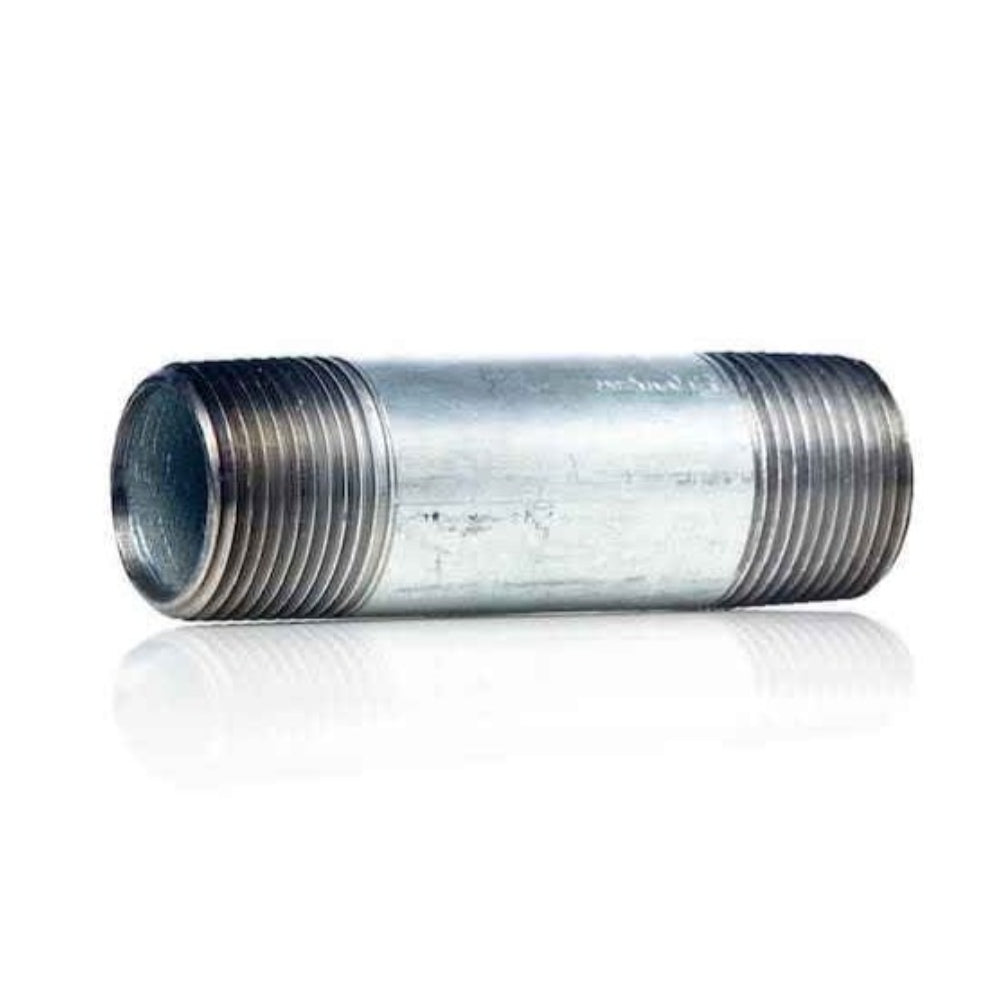

The AQUALINE GPN-125-40 is a Schedule 40 galvanized steel pipe nipple used in threaded piping systems across plumbing, HVAC, gas, and general industrial applications. Measuring 1.25 inches in diameter and 4 inches in length, this nipple connects threaded pipe sections, fittings, and valves. The hot-dip galvanized coating provides corrosion resistance in wet and outdoor environments. Licensed plumbers and pipefitters install this type of fitting during new construction and retrofit work where a short, rigid threaded connector is needed between components.

This nipple is suited for residential and light commercial piping installations. It is commonly used in water supply lines, gas distribution piping, fire protection systems, and mechanical room applications where Schedule 40 wall thickness and threaded ends are required. The 1.25-inch nominal size is a standard dimension found in many distribution and branch-line configurations.

Key Features

• Schedule 40 wall thickness for standard-duty threaded piping applications
• Galvanized steel construction provides corrosion resistance in wet and outdoor service
• 1.25-inch nominal diameter x 4-inch length for short-run connections
• Threaded on both ends for direct engagement with standard NPT fittings and valves
• Lightweight at 0.66 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement and standard-use fitting compatible with 1.25-inch NPT threaded pipe, fittings, and valves in Schedule 40 piping systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with the International Plumbing Code or applicable local codes. Shut off the water or gas supply and relieve system pressure before removing or installing any threaded fitting. Apply an approved thread sealant or PTFE tape to the male threads before making up the joint. Do not overtighten, as excessive torque can crack fittings or distort threads.

Technical Specifications

• Material: Galvanized Steel
• Schedule: Schedule 40
• Nominal Diameter: 1.25 inches
• Length: 4 inches
• Weight: 0.66 pounds
• UPC: 675135116058

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: GPN-125-40
