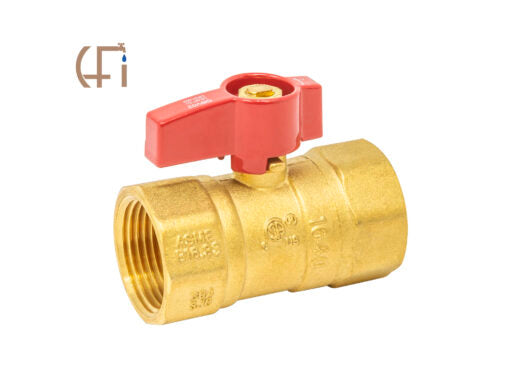

Aqualine GBV-100F Brass Gas Cock 1 Inch Threaded

Product Description

The AQUALINE GBV-100F is a 1-inch threaded brass gas cock designed for shutoff and flow control in gas distribution systems. Built from brass for durability and corrosion resistance, this valve provides a reliable quarter-turn shutoff for natural gas or propane service lines. It is a standard trade component installed by licensed plumbers and gas fitters on residential and light commercial gas piping systems. The threaded connection simplifies installation into existing NPT pipe runs without requiring specialized tools beyond standard pipe wrenches.

This gas cock is suited for use on gas supply lines feeding appliances such as furnaces, boilers, water heaters, ranges, and dryers. The 1-inch pipe size accommodates typical branch and main service line applications in both new construction and retrofit work. It is a common stock item for plumbing and HVAC contractors who need a dependable, code-acceptable manual shutoff at appliance connections or meter sets.

Key Features

• Brass body construction for corrosion resistance in gas service
• 1-inch threaded (NPT) connection for straightforward installation into standard pipe runs
• Quarter-turn operation provides quick visual confirmation of open or closed position
• Compact valve form factor suitable for tight utility spaces
• Weighs 0.83 pounds for easy single-hand handling during installation

Compatibility

Designed as an OEM-style replacement or new-install gas shutoff valve for 1-inch NPT gas piping systems in residential and light commercial applications.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the meter or upstream shutoff before beginning work and verify zero pressure in the line before opening any connections. Apply approved pipe thread sealant or PTFE tape rated for gas service to all threaded joints. After installation, pressure-test all joints with an approved leak-detection method before restoring gas service.

Technical Specifications

• Connection Size: 1 inch
• Connection Type: Threaded (NPT)
• Body Material: Brass
• Weight: 0.83 pounds
• Order Increment: 1

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: GBV-100F
