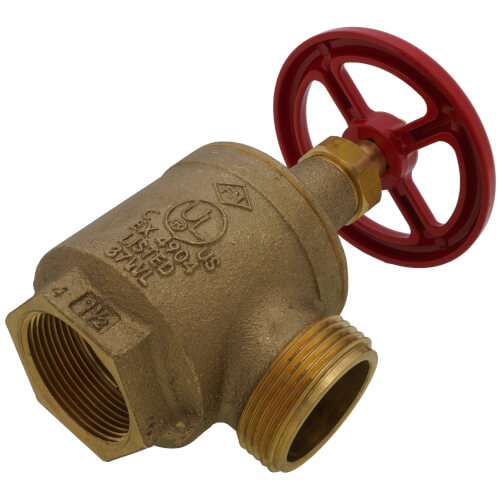

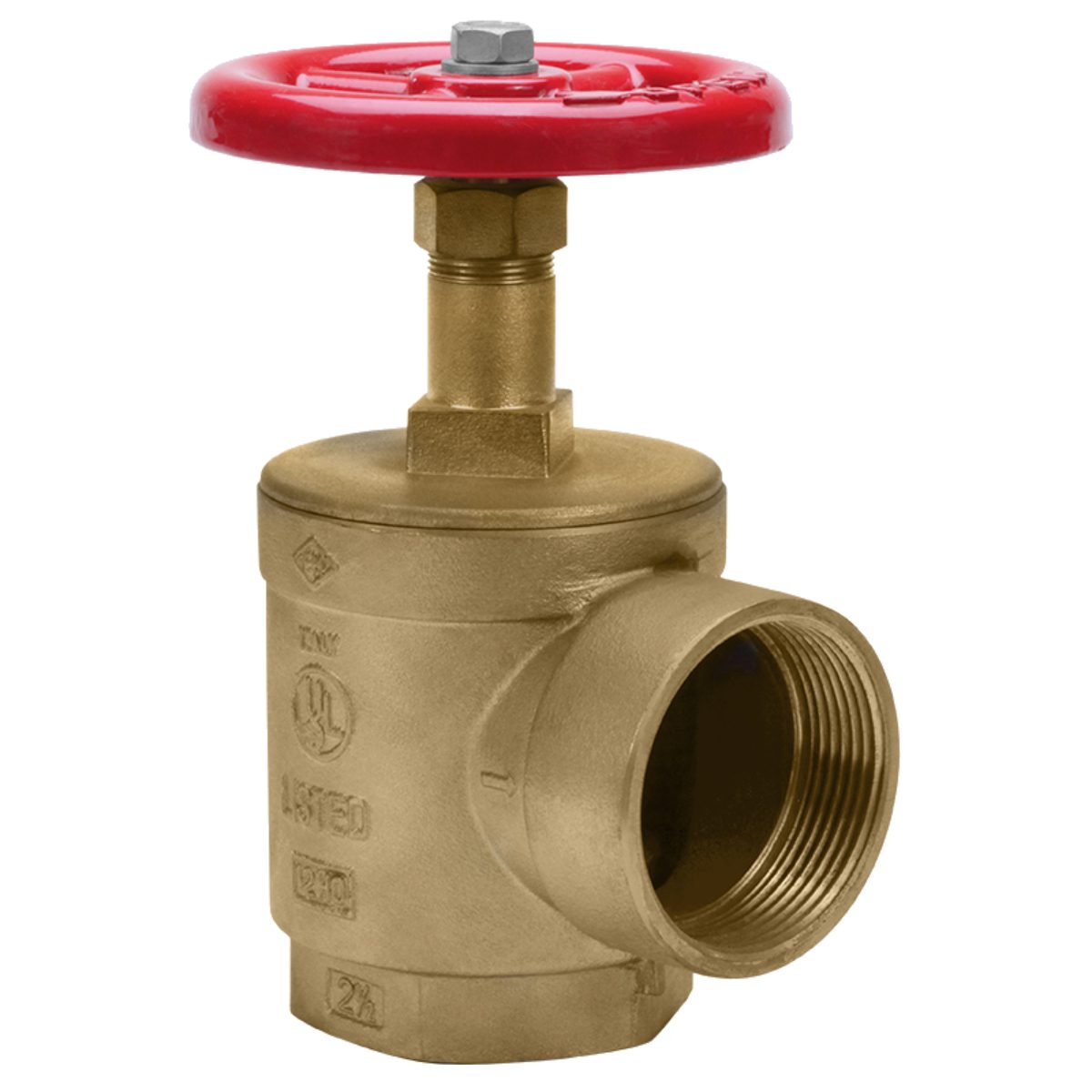

Aqualine FP-AV15M Brass Fire Hose Angle Valve 1.5in

Product Description

The AQUALINE FP-AV15M is a brass fire hose angle valve designed for use in fire suppression and standpipe hose station applications. It features a 1.5-inch Female Iron Pipe Thread (FIPT) inlet and a Male National Standard Thread (MNST) outlet, providing the standard connection points required for fire hose station assemblies. Constructed from brass, this valve delivers reliable corrosion resistance and durability in demanding service environments. It is typically installed by licensed fire protection contractors or licensed plumbers working on commercial and industrial fire suppression systems.

This angle valve is suited for wall-mounted hose stations in commercial buildings, industrial facilities, and multi-unit residential structures where standpipe systems are required by code. The FIPT inlet connects to a threaded steel or brass standpipe riser or outlet, while the MNST outlet accepts a standard fire hose coupling. The angle configuration allows the valve body to mount flush against a wall or inside a hose cabinet, directing the hose connection outward at a right angle for easy access during emergency use.

Key Features

• 1.5-inch FIPT inlet for direct threaded connection to standpipe outlets
• MNST outlet compatible with standard fire hose couplings
• Brass construction for corrosion resistance and long service life
• Angle-body design suits wall-mounted and cabinet hose station installations
• Order increment of 1 for single-unit procurement

Compatibility

Designed as an OEM-style replacement or new-installation component for 1.5-inch standpipe hose station assemblies using standard FIPT inlet and MNST hose connections.

Installation Notes

Installation should be performed by a licensed fire protection contractor or qualified plumber in accordance with NFPA 14 and applicable local codes. Shut off the water supply and depressurize the standpipe system before beginning any valve work. Apply appropriate thread sealant to the FIPT connection and torque to fitting manufacturer guidelines. Verify the MNST outlet threads are clean and undamaged before attaching hose hardware.

Technical Specifications

• Inlet Connection: 1.5 inches FIPT
• Outlet Connection: 1.5 inches MNST
• Material: Brass
• Valve Body Style: Angle
• Order Increment: 1

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: FP-AV15M
