Aqualine AVB-200 Vacuum Breaker 2.00, 2

Product Description

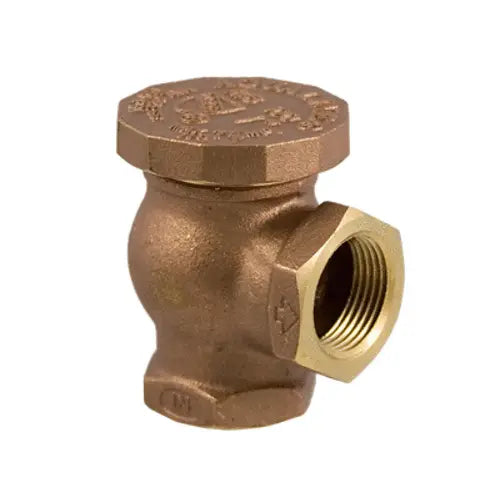

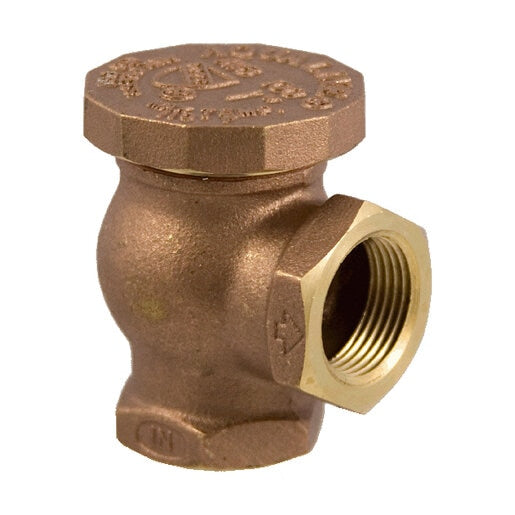

The Aqualine AVB-200 vacuum breaker is a durable brass atmospheric vacuum breaker with female pipe thread inlet/outlet. Vacuum breakers prevent back-siphonage of water into the water source, reducing the risk of potable water contamination. These are installed downstream of valves, at least 6 in. above highest water flow.

• Easy to install
• Durable brass
• Must be in an upright position.

Product Highlights

This vacuum breaker must be in an upright level position, not on angle or tilt, with inlet at the bottom and outflow at the side. Vacuum breakers are not rated for constant pressure.

Product Information

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: AVB-200

Technical Specifications

• Material: Cast Brass
• Connection Type: FNPT
• Pressure Rating: 150 PSI
• Connection Size: 2 in.
• Item: Vacuum Breaker
• Type: Pressure
• Includes: Union
• Regulated: No
• Brand Name: Aqualine
• Body Material: Lead Brass
• Working Pressure: 150 psi
• MFG Number: AVB-200
