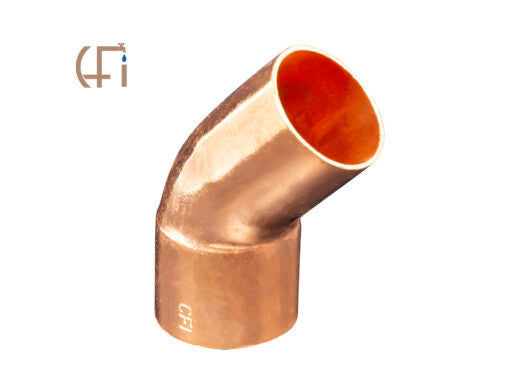

Aqualine 319-100 Copper Street 45 Elbow 1 Inch

Product Description

The AQUALINE 319-100 is a 1-inch copper street 45-degree elbow fitting used to change flow direction in copper piping systems. Street fittings accept a male sweat connection on one end and a female sweat socket on the other, eliminating the need for an additional coupling when transitioning between straight pipe and an angled run. Weighing 0.14 pounds, this compact fitting is suited for residential and light commercial plumbing, HVAC condensate lines, and hydronic piping. Licensed plumbers and HVAC technicians install this type of fitting during rough-in work and service repairs requiring directional changes in copper supply or drain lines.

This elbow is designed for use in 1-inch copper pipe systems where a 45-degree directional change is required. It is commonly installed in domestic water supply lines, HVAC refrigerant and condensate piping, and radiant heating loops. The street configuration is particularly useful in tight spaces where a standard fitting-to-pipe-to-fitting layout would add unnecessary length to the run.

Key Features

• Street fitting design with one male sweat end and one female sweat socket for direct pipe-to-fitting connections
• 45-degree bend angle for gradual directional changes with lower flow resistance than a 90-degree elbow
• 1-inch nominal copper sizing for standard residential and light commercial pipe systems
• Lightweight construction at 0.14 pounds for easy handling during installation
• Sweat-solder connection type compatible with standard copper pipe joining practices

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-inch copper pipe systems using sweat-solder joint connections.

Installation Notes

Installation is performed by a licensed plumber or qualified HVAC technician using a pipe cutter, deburring tool, flux, solder, and a torch rated for copper sweating. Shut off the water supply and relieve system pressure before cutting into any existing line. Follow all applicable IPC and local plumbing codes for joint preparation, flux application, and solder type, particularly on potable water systems where lead-free solder and flux are required. Allow the fitting to cool fully before restoring system pressure.

Technical Specifications

• Pipe Size: 1 inch
• Fitting Angle: 45 degrees
• Fitting Type: Street Elbow
• Connection Type: Sweat (Male x Female Socket)
• Material: Copper
• Weight: 0.14 pounds

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: 319-100
