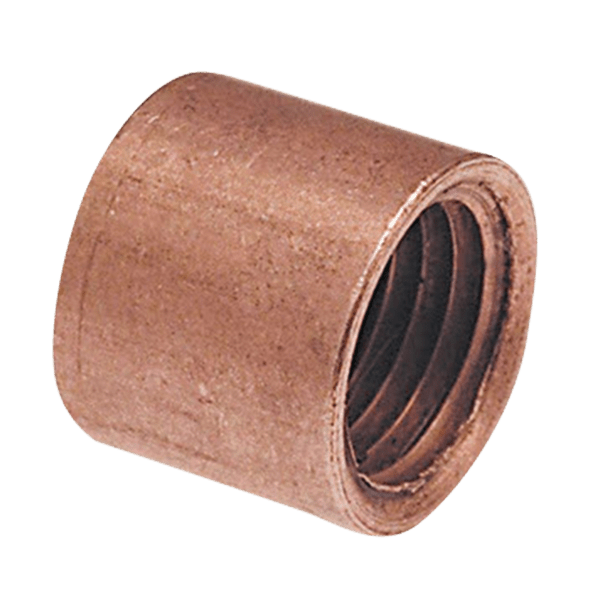

Aqualine 317-1050 Copper Fitting Reducer 1x0.5 in

Product Description

The AQUALINE 317-1050 is a copper fitting reducer designed to transition between a 1-inch line and a 1/2-inch line in plumbing and hydronic piping systems. This type of fitting is used to step down pipe diameter within a supply or return run, maintaining flow continuity where pipe sizing changes. At 0.1 pounds, it is a compact, lightweight component. Plumbers and pipefitters install this fitting using standard soldering techniques in both residential and light commercial applications.

This reducer is suited for use in domestic water supply lines, radiant heating distribution piping, and general plumbing rough-in work where a 1-inch-to-1/2-inch diameter reduction is required. It is a common component in manifold branch connections, fixture supply drops, and zone piping layouts. The fitting follows standard copper sweat connection practices and fits standard copper tubing dimensions.

Key Features

• Reduces line diameter from 1 inch to 1/2 inch in a single fitting
• Copper construction provides corrosion resistance and long service life
• Lightweight at 0.1 pounds for easy handling and installation
• Compatible with standard sweat-solder copper fitting assembly methods
• Order increment of 1 allows single-unit purchasing

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard copper piping systems requiring a 1-inch to 1/2-inch reducer connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before cutting or fitting. Clean and flux both the pipe ends and the fitting sockets thoroughly before applying heat with a propane or MAP torch to ensure a proper solder joint. Allow the joint to cool completely before restoring pressure and checking for leaks.

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 0.5 inch
• Material: Copper
• Weight: 0.1 pounds
• Order Increment: 1

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: 317-1050
