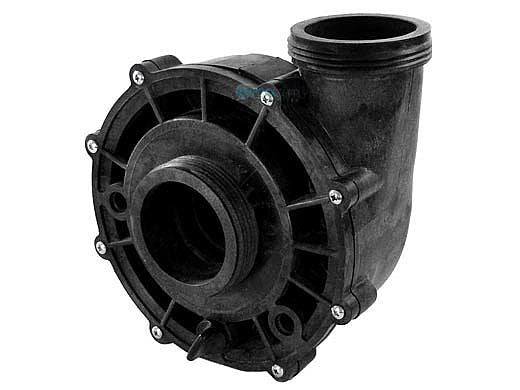

Aquaflo/Gecko 91041825-000 Wet End 2.5hp Replacement

Product Description

The Aquaflo/Gecko Wet End, part number 91041825-000, is designed for the XP2 and XP2E pumps with two point five horsepower. This component features a side discharge and includes a two mbt suction and discharge. It is compatible with a three horsepower, forty-eight frame, thru-bolt style motor. The motor can operate at either a single or dual speed, providing flexibility in applications. The wet end's design allows for a ninety-degree rotation to adjust the discharge position as required.

• Includes essential components: volute, seal, impeller, wear ring, suction cover, o-rings, drain plug, and screws.
• Operational horsepower ratings are crucial; match the operational hp rather than total horsepower for older models.
• Motor and unions are sold separately.

Product Highlights

This wet end is engineered for reliable use in various pumping applications, ensuring efficient operation with minimum maintenance required.

Product Information

Standard Information

• Brand: Aquaflo/Gecko
• MPN: 91041825-000

Technical Specifications

• Type: Wet End
• Compatibility: XP2/XP2E Pump
• Horsepower: 2.5 hp
• Frame Size: 48
• Discharge Position: Rotatable 90 degrees
• Components Included: Volute, Seal, Impeller, Wear Ring, Suction Cover, O-Rings, Drain Plug, Screws
