Aquaflo/Gecko 91040690-000 Wet End 0.75hp 1-1/2mbt 48fr

Product Description

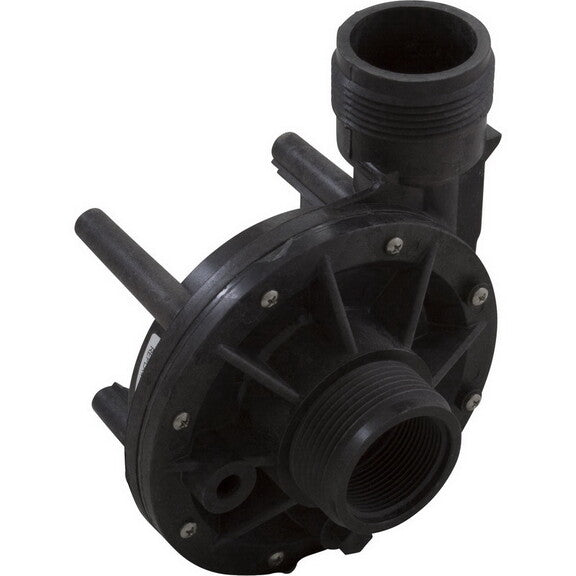

The Aquaflo/Gecko 91040690-000 wet end is designed for the FMHP pump series. It features a side discharge and utilizes a one and one-half inch male pipe thread for both suction and discharge. This wet end is compatible with a three-quarter horsepower, forty-eight frame, thru-bolt style motor, which can operate at either single or dual speeds. The design allows for the wet end to be rotated ninety degrees to adjust the discharge position. Included in the package are the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws. Motor and unions are sold separately.

• Includes complete assembly for installation
• Compatible with single and dual-speed motors
• Rotatable for flexible discharge positioning

Product Highlights

This item offers an efficient solution for pool and spa pump applications.

Product Information

Standard Information

• Brand: Aquaflo/Gecko
• MPN: 91040690-000

Technical Specifications

• Frame Size: 48
• Horsepower: 0.75
• Discharge Size: 1.5 mbt
• Motor Style: Thru-bolt
• Rotatable Discharge: Yes
• Includes: Volute, Seal, Impeller, Wear Ring, Suction Cover
• Additional Features: Drain Plug, O-rings, Screws
