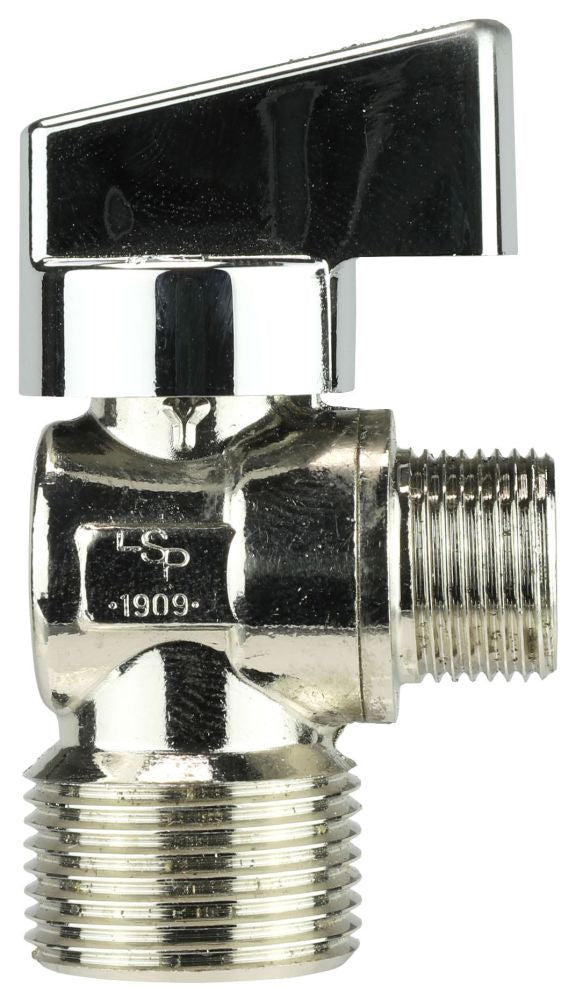

Aqua-Flo VE-101-A-LL Ball Valve 1/4 Turn 5/8 Inch x 3/8 Inch

Product Description

The Aqua-Flo VE-101-A-LL is a 1/4 turn ball valve designed for effective flow control in various plumbing applications. It features a nominal size of five eighths inch by three eighths inch. The valve is constructed with a nickel-plated brass body, ensuring durability and resistance to corrosion.

• Quick and easy quarter turn shut off for immediate flow control
• Compression x compression end connection for flexible installation
• PTFE seat material for extended wear resistance

Product Highlights

This ball valve provides reliable performance at temperature ratings ranging from forty to one hundred sixty degrees Fahrenheit. It also supports pressure ratings from twenty to one hundred twenty-five PSI, making it suitable for a variety of water supply systems.

Product Information

Standard Information

• Manufacturer: Aqua-Flo
• MPN: VE-101-A-LL

Technical Specifications

• Type: Ball Valve
• Actuation Type: 1/4 Turn
• Nominal Size: 5/8 Inch x 3/8 Inch
• End Connection: Compression x Compression
• Body Material: Nickel Plated Brass
• Seat Material: PTFE
• Temperature Rating: 40 to 160 Degrees F
• Pressure Rating: 20 to 125 PSI
• Applicable Standards: NSF/ANSI 61, IAPMO, ASME A112.18.1/CSA B125.1
